SKU: S-RRGB1680(66IN)-MP1140
Adding product to your cart
Product Overview

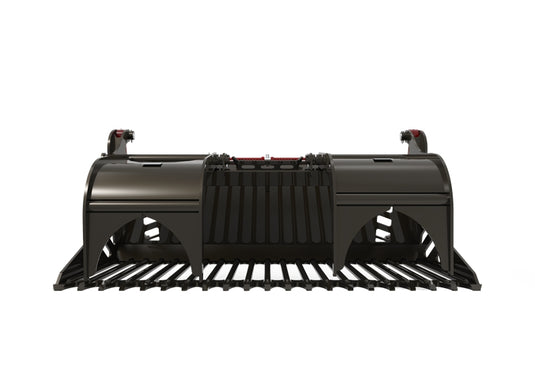

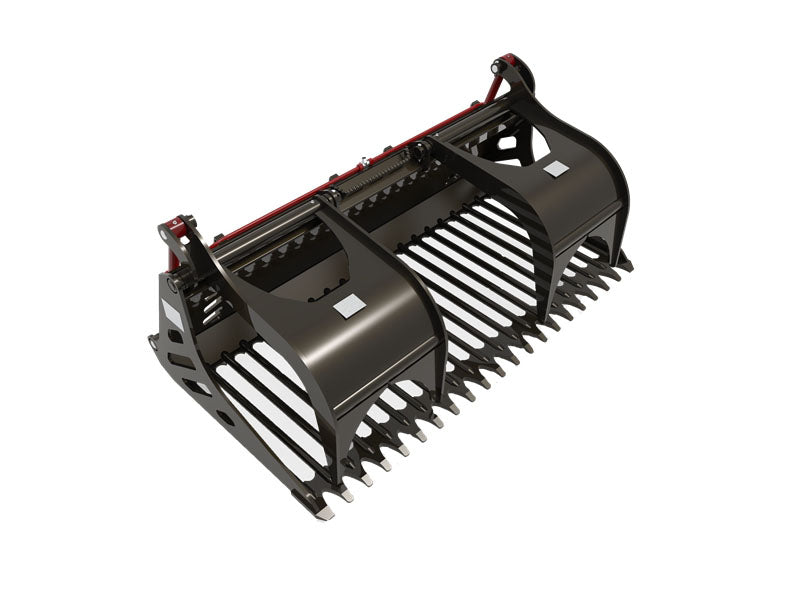

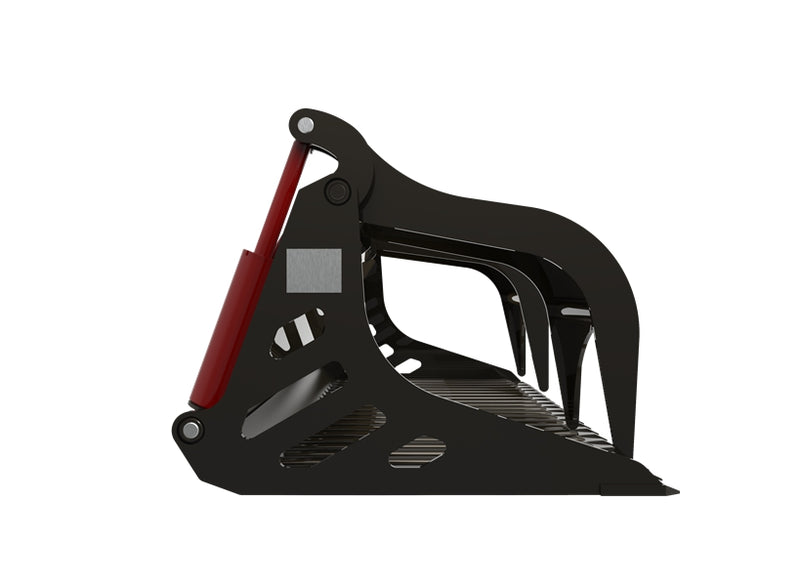

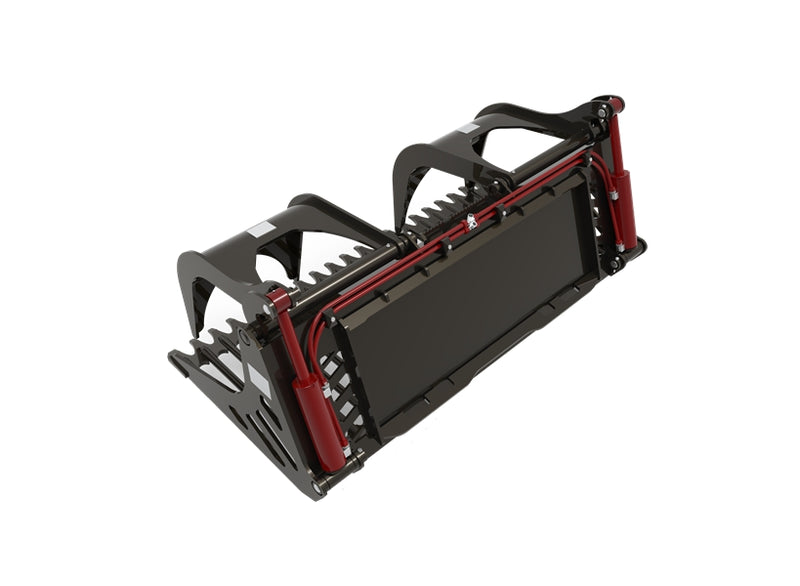

Hydraulically operated the grapple is fitted to the rock bucket to provide a grabbing arm to trap and contain debris. It is ideal for hard to handle loads such as demolition clean up logos, rock, shrubs, bushes and waste management.
Details
Features:
·Rod Rock Grapple Bucket
Specifications:
Type
Dimension (W×D×H)/inch
Harrow Dia./inch
Opening Range(OR)/inch
Operating Pressure/MPa
Hydraulic Flow/LPM
Weight/lb
S-RRGB1680(66IN)-MP1140
66.1×36.7 × 28.0
1.2
0.0-38.6
16
60
859.8
S-RRGB1780(70IN)-MP1140
70.1×36.7 × 28.0
877.5
S-RRGB1880(74IN)-MP1140
74.0×36.7 × 28.0
109
908.2
S-RRGB1980(78IN)-MP1140
78.0×36.7 × 28.0
956.8
S-RRGB2080(82IN)-MP1140
81.9×36.7 × 28.0
963.4
Technical Drawing:
