Product Overview

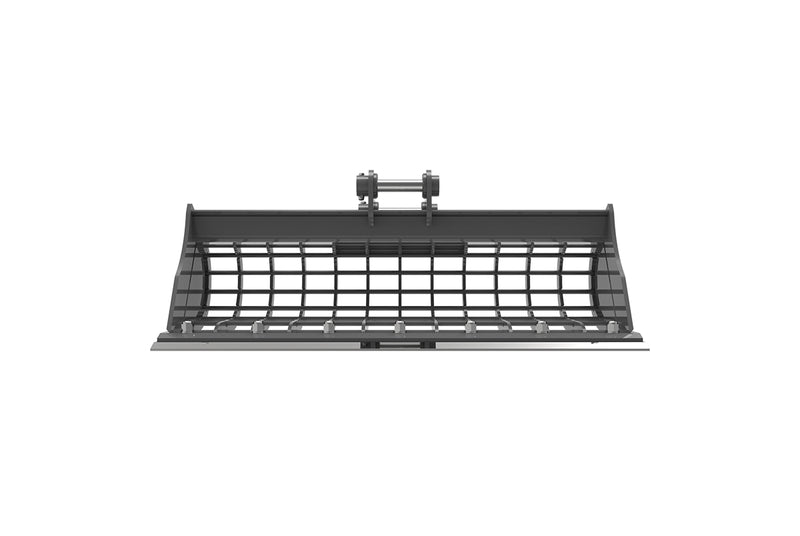

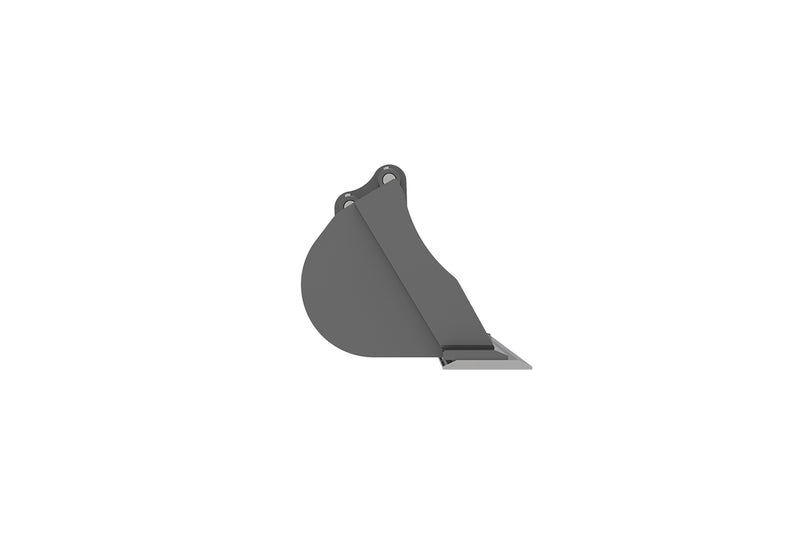

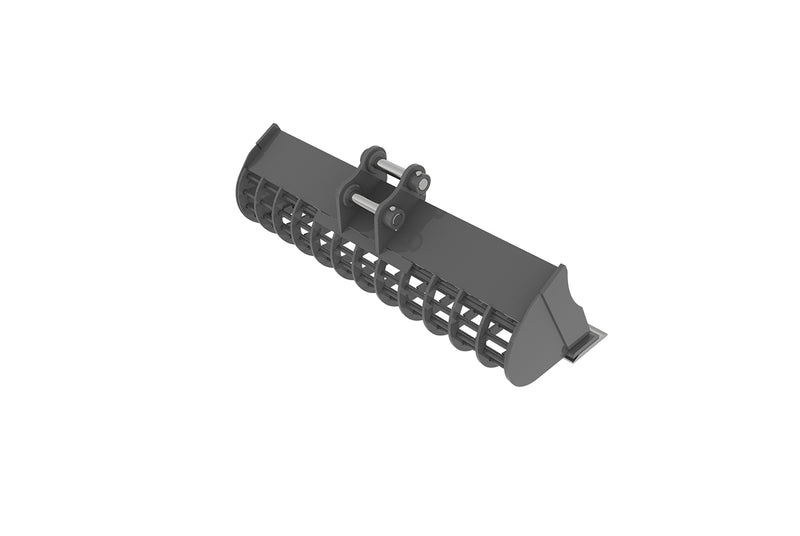

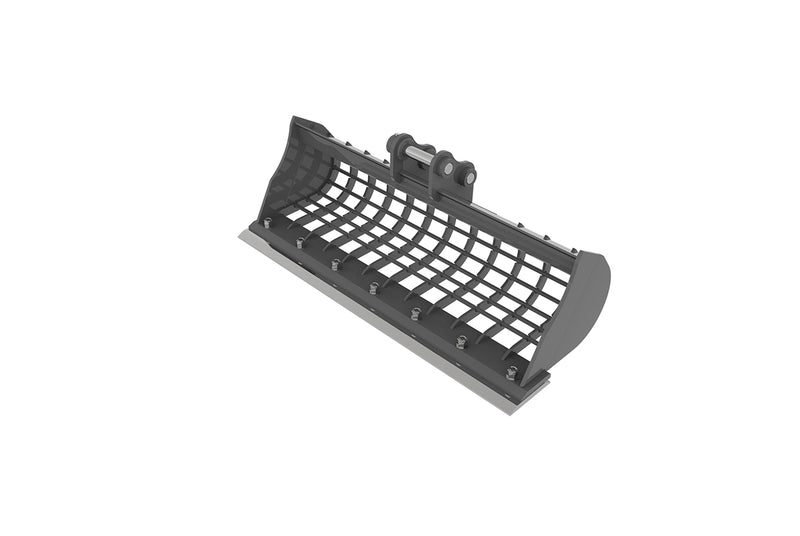

The Mud Sieve Bucket, also can be Riddle bucket or Sift bucket, is designed for maximum efficiency in material processing and site preparation.
Details
Features:
·Mud Sieve Bucket
·Standard with a bolt on cutting edge
Specifications:
|
Type
|
Dimension(WDH) / inch
|
Volume / m³
|
Horns Space / inch
|
Bracket Type
|
Weight / lb
|
|
ME-KP340SB1000-Kubota U17
|
40.47 × 15.43 × 15.91
|
0.06
|
2.87
|
Kubota U17
|
154.32
|
|
ME-KP340SB1000-VIO17
|
40.47 × 15.43 × 15.91
|
0.06
|
2.87
|
VIO17
|
156.53
|
|
ME-KP340SB1000-PC18MR-3
|
40.47 × 15.43 × 15.91
|
0.06
|
2.87
|
PC18MR-3
|
156.53
|
Technical Drawing:
