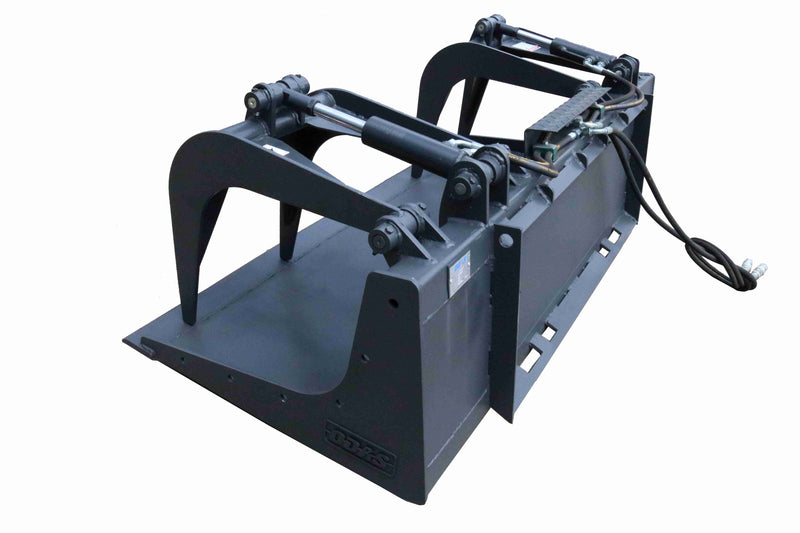

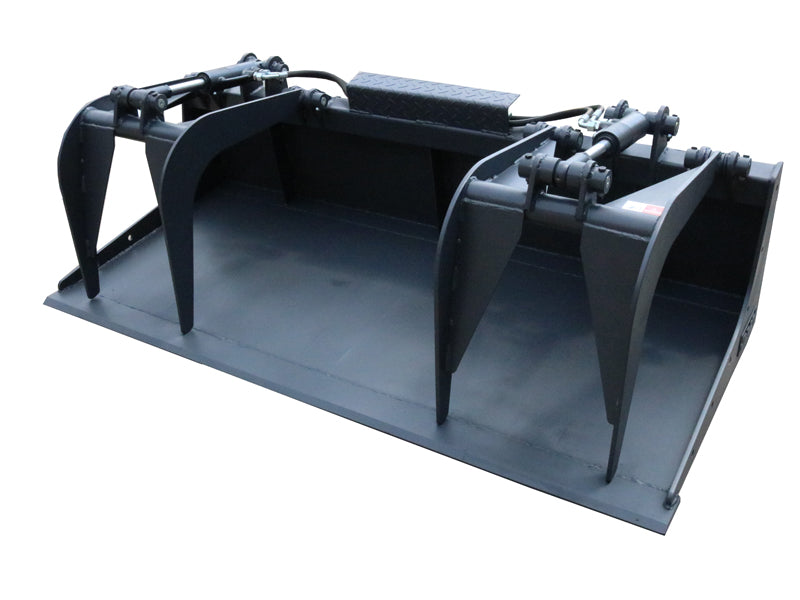

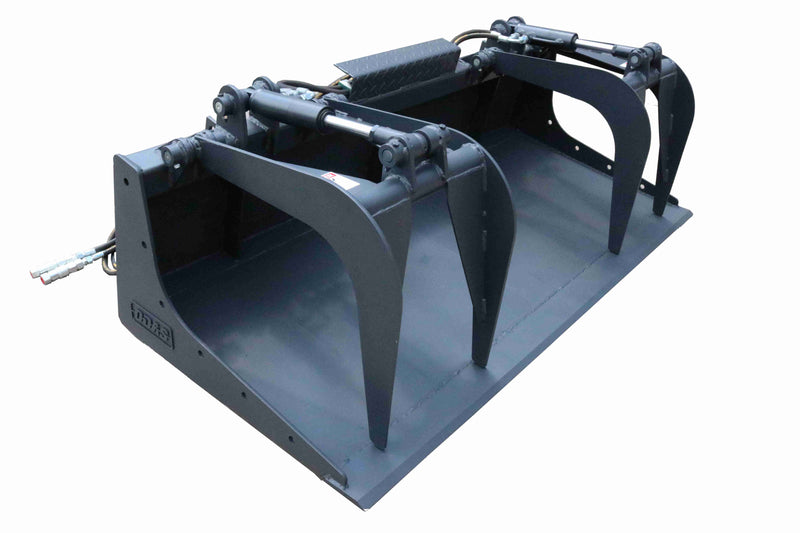

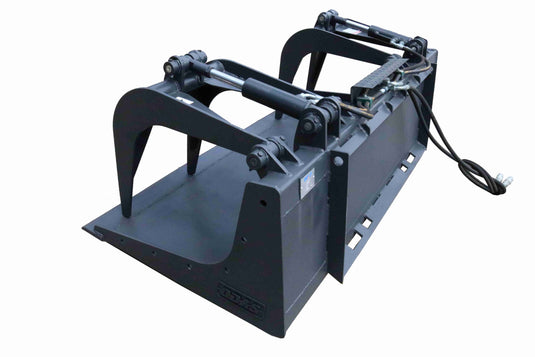

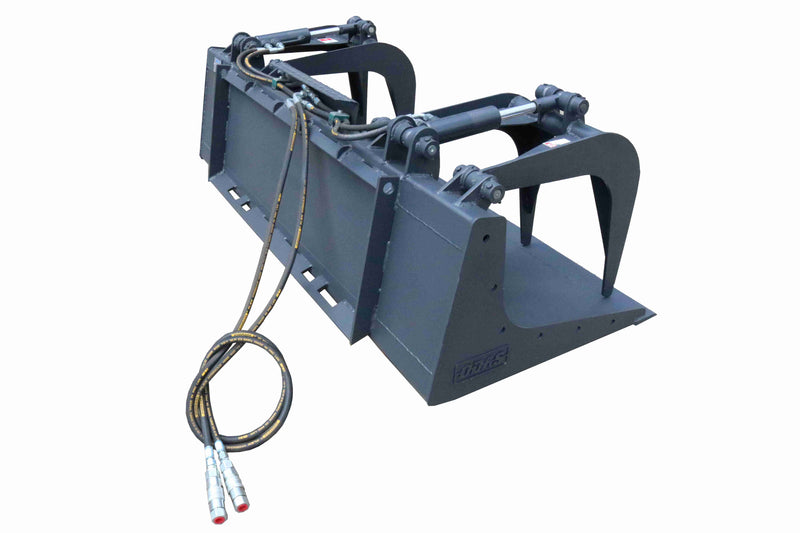

Product Overview
The grapple bucket attachment's basic design allows it to load and grapple large and/or uneven objects as well as clean up the smallest debris. Move difficult to handle material, such as scrap and waste, quickly and easily.
Details
Features:
·Grapple Bucket
·2 independent cylinders
Specifications:
|
Type
|
Dimension (W×D×H) / inch
|
Main Plate Thickness / inch
|
Opening Range (OR) / inch
|
Operating Pressure / MPa
|
Hydraulic Flow / LPM
|
Attachment
|
Weight / lb
|
|
CW-ZD1300-Avant300-700
|
51.18×35.39×25.98
|
0.12
|
0–31.10
|
16
|
60
|
Avant300-700
|
434.31
|
Technical Drawing:
