Product Overview

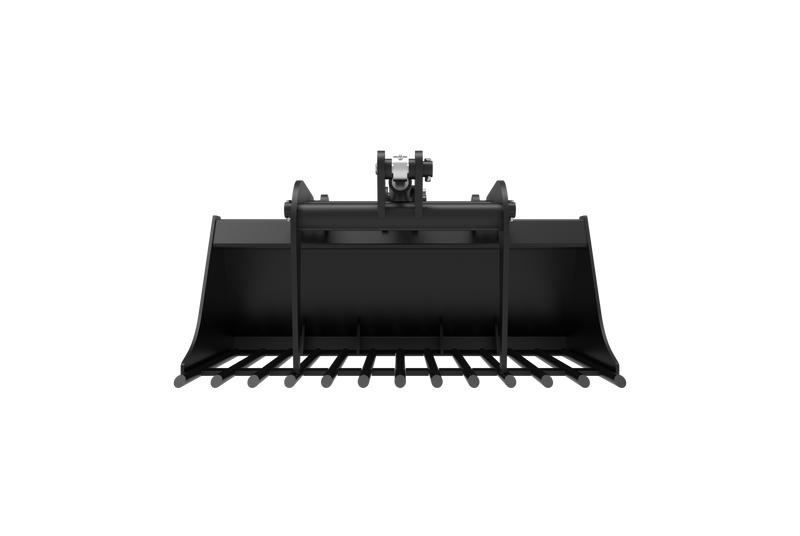

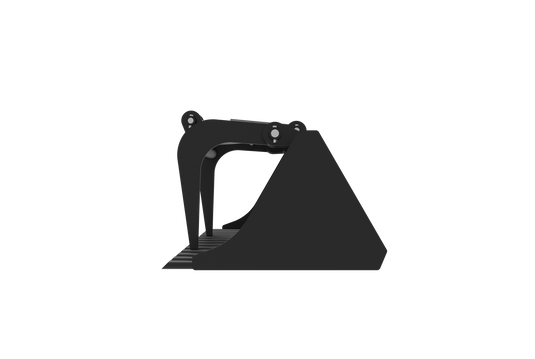

Hydraulically operated the grapple is fitted to the rock bucket to provide a grabbing arm to trap and contain debris. It is ideal for hard to handle loads such as demolition clean up logos, rock, shrubs, bushes and waste management.
Details
Features:
·Grapple Bucket
·Greaseable pins & bushings for easy maintenance, long life
·Skeleton tine bottom for debris sifting
·Hydraulic hoses + flat-face couplers for quick hookup
Specifications:
|
Type
|
Dimension (W×H) / inch
|
Harrow Dia. / inch
|
Harrow Spacing / inch
|
Opening Range (OR) / inch
|
Operating Pressure / MPa
|
Hydraulic Flow / LPM
|
Weight / lb
|
|
W-RRGB1070(42IN)-Avant300-500
|
42.13×29.06×17.44
|
0.98
|
3.31
|
0–24.21
|
16
|
60
|
271.17
|
|
W-RRGB1120(44IN)-Avant300-500
|
44.09×29.06×17.44
|
0.98
|
3.31
|
0–24.21
|
16
|
60
|
279.99
|
|
W-RRGB1220(48IN)-Avant300-500
|
44.09×29.06×17.44
|
0.98
|
3.31
|
0–24.21
|
16
|
60
|
286.60
|
Technical Drawing:
