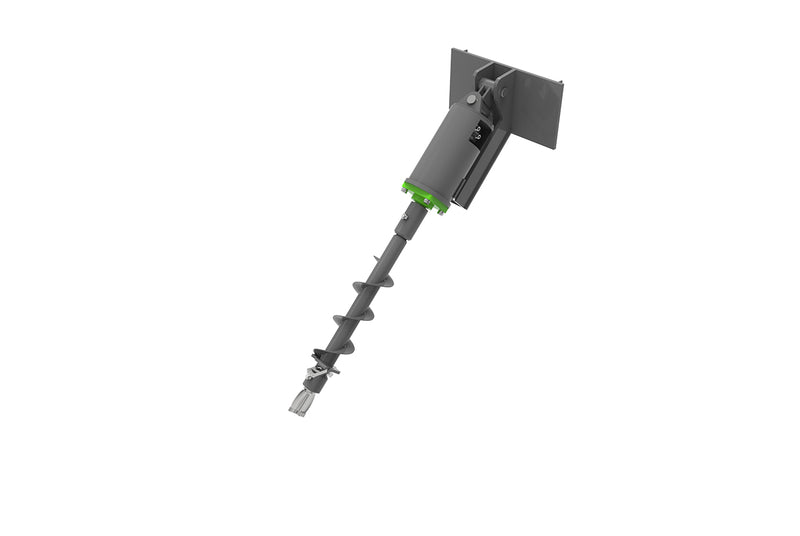

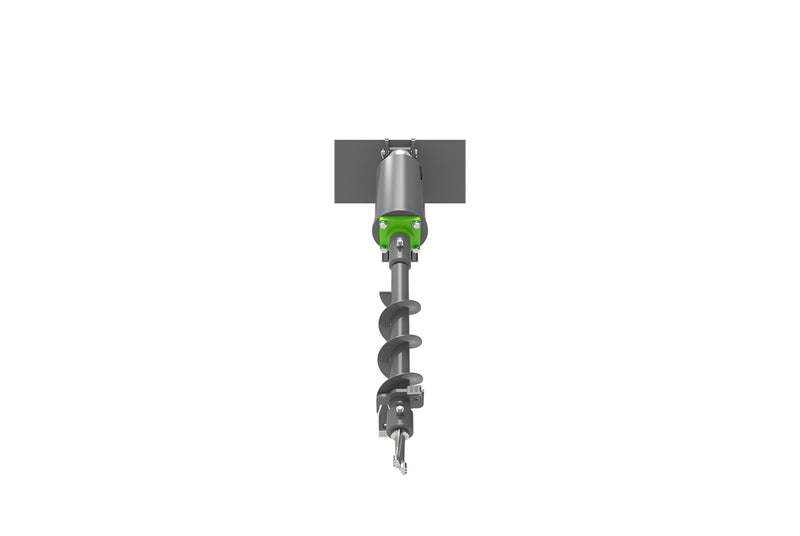

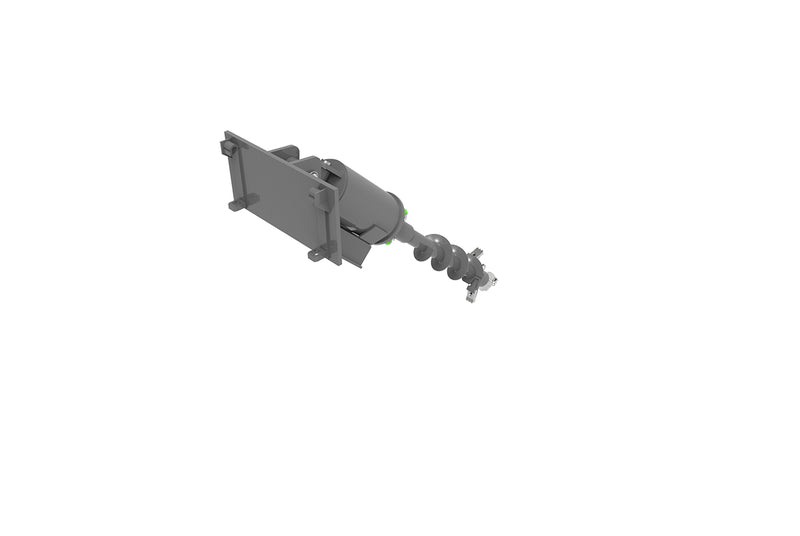

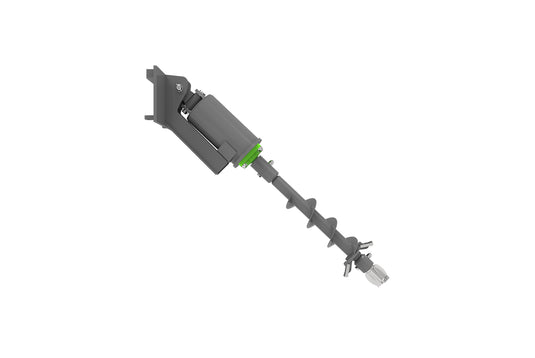

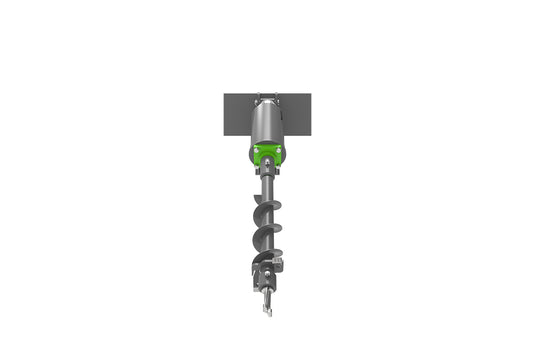

Product Overview
Takes the effort out of digging the right sized hole for the task at hand. A hydraulic motor drives the auger through a sealed planetary gear reduction.
The heavy duty all gear design of our planetary drives gives these units a long life with minimal maintenance and service costs.
Details
Features:
·Auger
·Hydraulic motor + sealed planetary gear drive
·Heavy-duty all-gear planetary design
Specifications:
|
Type
|
Stem Qty.
|
Dimension (L×W×H) / inch
|
Drill pipe Length / inch
|
Auger Dia. / inch
|
Auger Thickness / inch
|
Operating Pressure / MPa
|
Hydraulic Flow / LPM
|
Weight / lb
|
|
CW-AG23-(D150L915T4)-Avant300-700
|
1
|
52.24×23.23×47.1
|
36.02
|
5.91
|
0.16
|
16
|
75
|
286.60
|
Technical Drawing:
