Product Overview

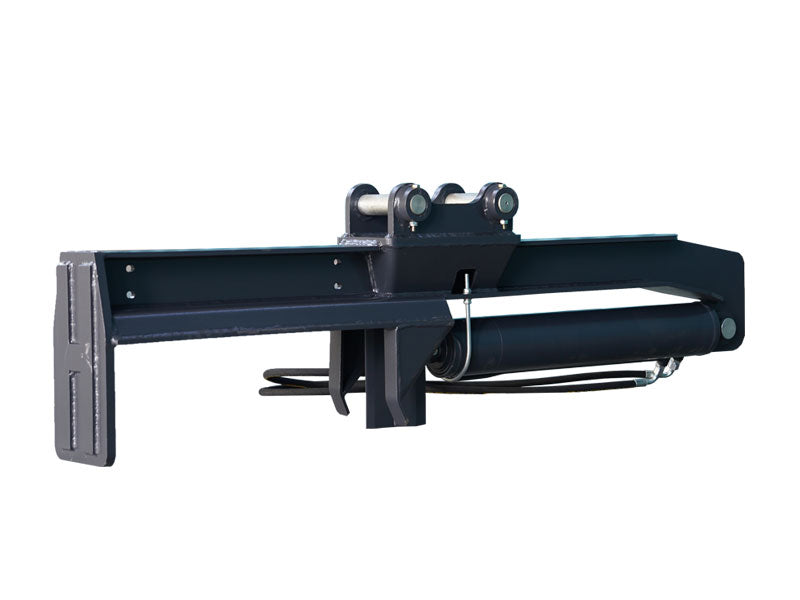

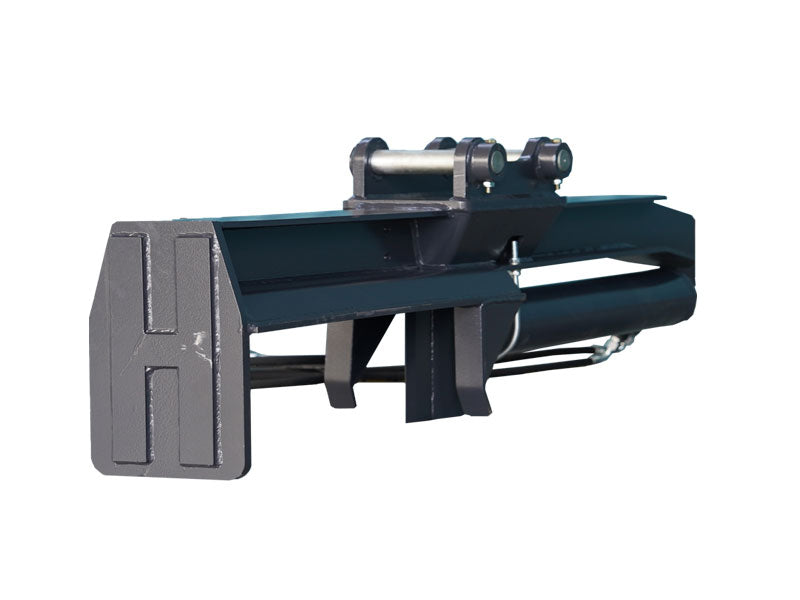

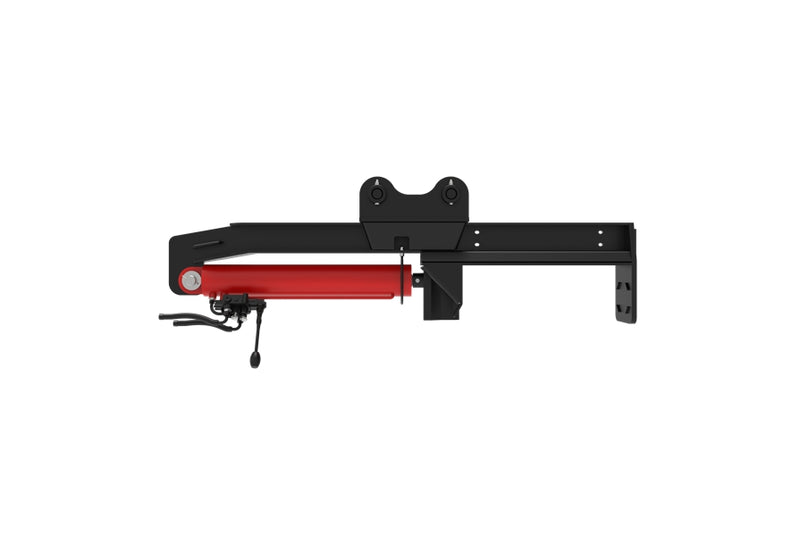

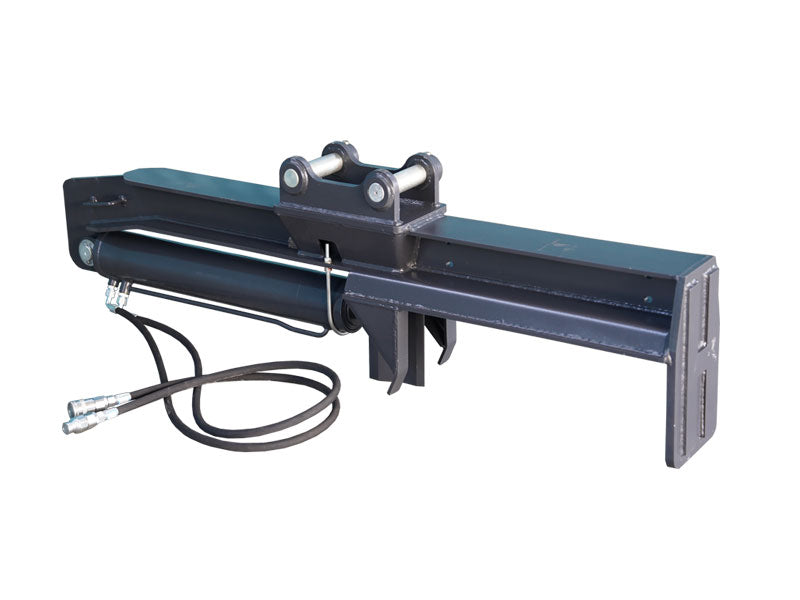

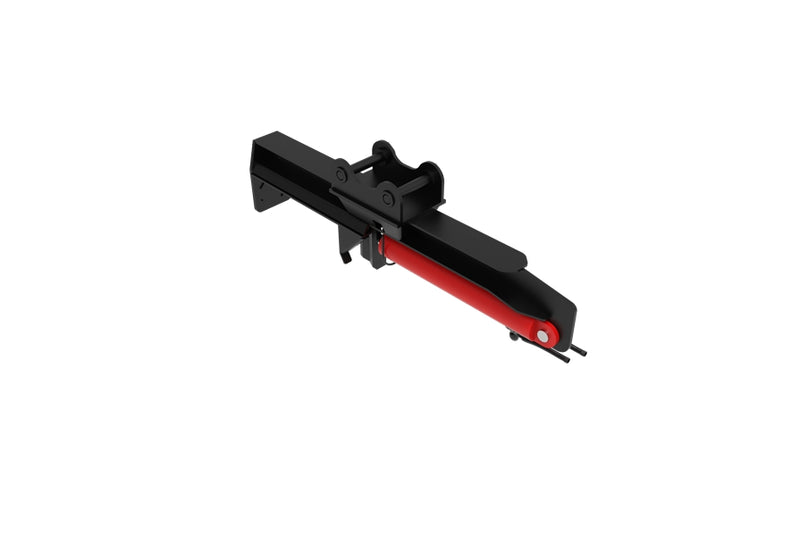

Our inverted log splitter delivers 20 tons of splitting force, allowing operators to split wood comfortably from the safety of their cab.
Simply use the front of the splitter to position the log, lower the inverted splitter over it, and engage the auxiliary hydraulics to split logs up to 760mm long directly on the ground.
Alternatively, you can position the splitter over a log, apply pressure, lift it up, and move it to another location for splitting.
Details
Features:
·Log Splitter
·Fits all makes and models of excavators equipped with a universal bracket hitch (S30–S70) or a combi bracket hitch
Specifications:
|
Type
|
Dimension(LWH) / inch
|
Chop Wood Length(Ls) / inch
|
Split Force / lb
|
Bracket Type
|
Operating Pressure / MPa
|
Hydraulic Flow / LPM
|
Weight / lb
|
Suit Excavator / T
|
|
E-LS25-S45
|
73.62 × 11.50 × 22.28
|
0 - 25.59
|
55115.50
|
S45
|
16
|
60
|
467.38
|
4-6
|
Technical Drawing:
