Product Overview

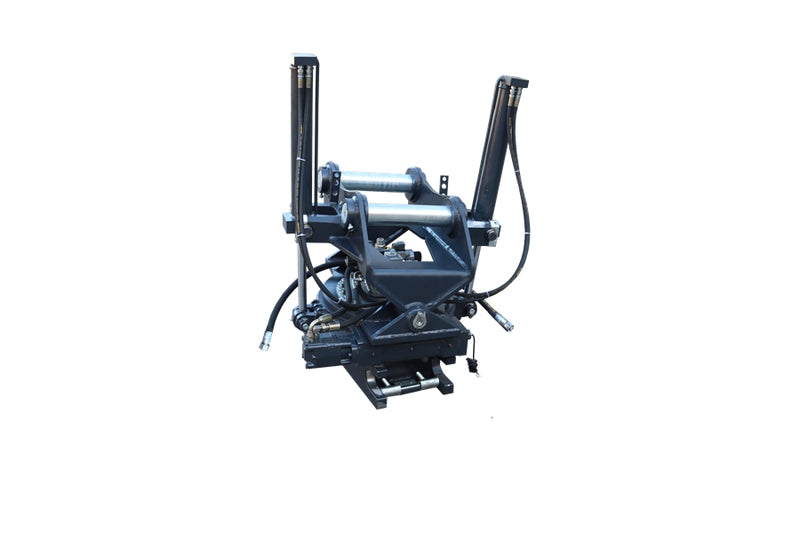

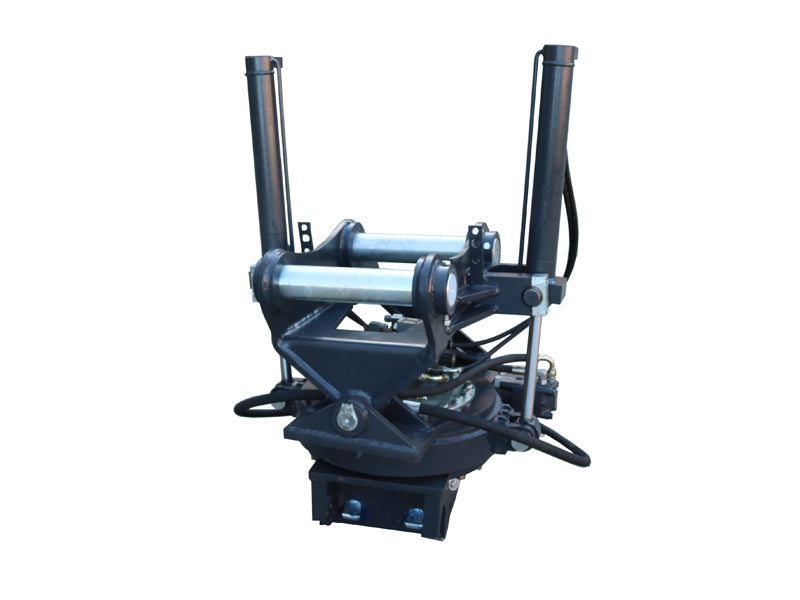

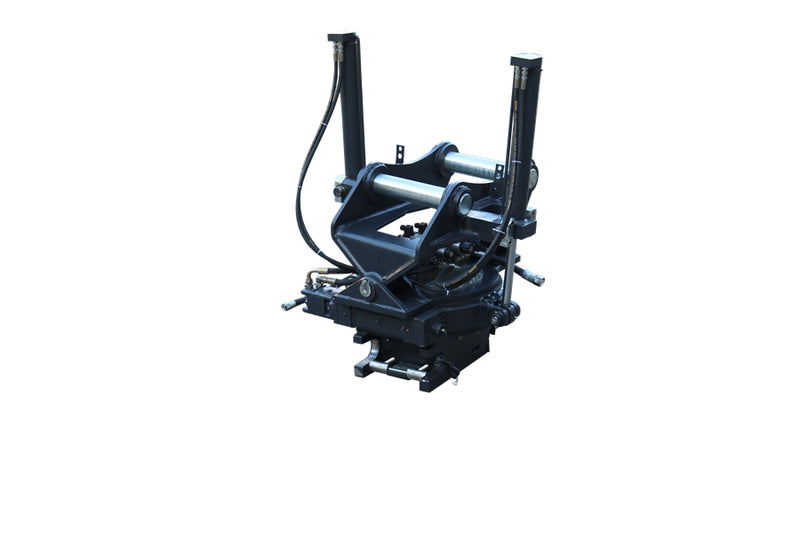

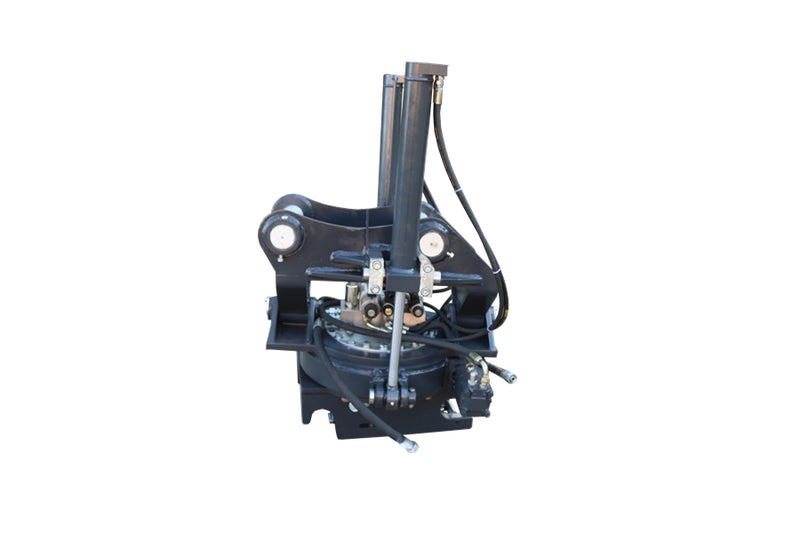

Tiltrotator for excavators and backhoe loaders between 7 and 10 tonnes.
The tiltrotator is designed to deliver the power and durability that is a must for larger excavators. A well thought-out design, raw power, precision and smoothness are combined in 360° rotation, tilt and quick coupling functions. This facilitates your work and makes you flexible to take on a variety of challenging new jobs.
Details
Features:
·Tilt Rotator
·Gear housing, bottom and top in solid cast steel, hardened shafts and piston rods, dual acting tilt cylinders
Specifications:
|
Type |
Axle Base(A) / inch |
Weight / lb |
Suit Excavator / T |
|
ME-X02-S30 |
9.07 |
198.42 |
1-2 |
|
ME-X04-S40 |
11.83 |
264.55 |
2-3.5 |
|
E-X07-S45 |
16.95 |
440.92 |
4-6 |
|
E-X12-S50 |
16.95 |
771.62 |
6-8 |
|
E-X18-S60 |
18.92 |
1102.31 |
10-14 |
|
E-X26-S70 |
23.64 |
1322.77 |
16-18 |
|
E-X32-S80 |
26.40 |
1873.93 |
20-25 |
Technical Drawing:
