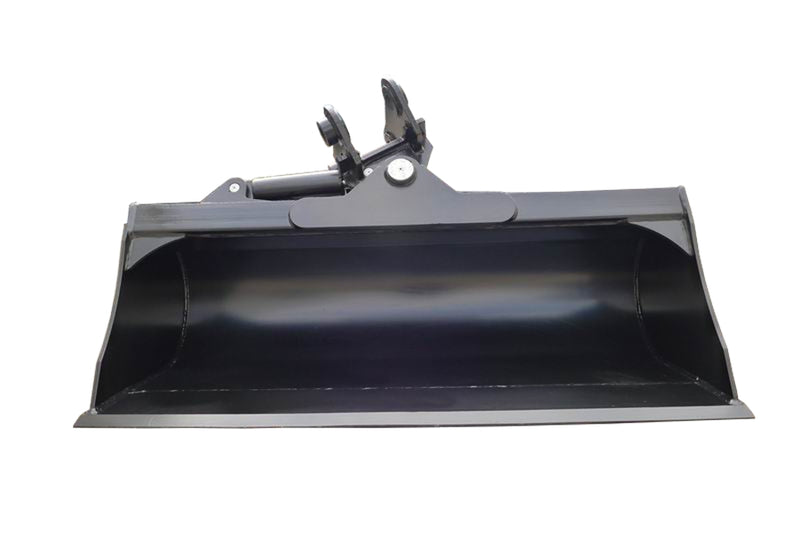

Product Overview
The tilt bucket is generally used in clean up, ditching or grading applications.
Sturdy and wear-resistant, high quality cutting edge and side cutting edge.
Details
Features:
·Tilt Bucket
·Tilting range of 2×45°
Specifications:
|
Type |
Cylinder Qty. |
Dimension(WDH) / inch |
Main Plate Thickness / inch |
Tilt Angle(SA) / ° |
Operating Pressure / MPa |
Hydraulic Flow / LPM |
Bracket Type |
Weight / lb |
Suit Excavator / T |
|
ME-TB1.5-S30 |
1 |
36.42 × 21.65 × 23.46 |
0.20 |
45 |
16 |
60 |
S30 |
207.23 |
1-2 |
|
ME-TB2.0-S40 |
1 |
40.35 × 25.00 × 26.85 |
0.20 |
45 |
16 |
60 |
S40 |
291.01 |
2-3.5 |
|
ME-TB3.0-S40 |
1 |
48.23 × 24.13 × 27.68 |
0.24 |
45 |
16 |
60 |
S40 |
350.53 |
2-3.5 |
|
E-TB5.0-S50 |
1 |
60.04 × 32.36 × 35.12 |
0.24 |
45 |
16 |
60 |
S50 |
628.32 |
6-8 |
|
E-TB6.0-S60 |
1 |
63.98 × 34.80 × 37.91 |
0.24 |
45 |
16 |
60 |
S60 |
723.12 |
10-14 |
|
E-TB12-S70 |
2 |
71.85 × 47.87 × 52.28 |
0.31 |
45 |
16 |
60 |
S70 |
1510.16 |
16-18 |
Technical Drawing:
