Product Overview

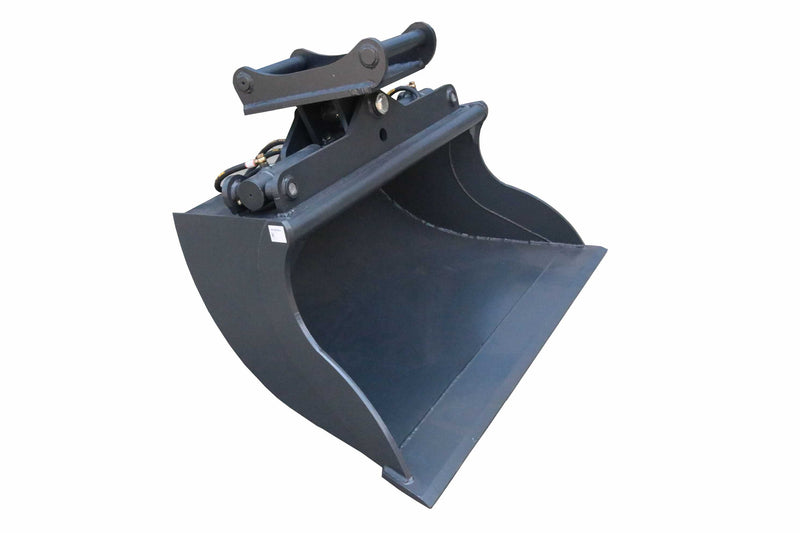

The Grading bucket is generally used in clean up, ditching or grading applications. Tilting range of 2×45°.

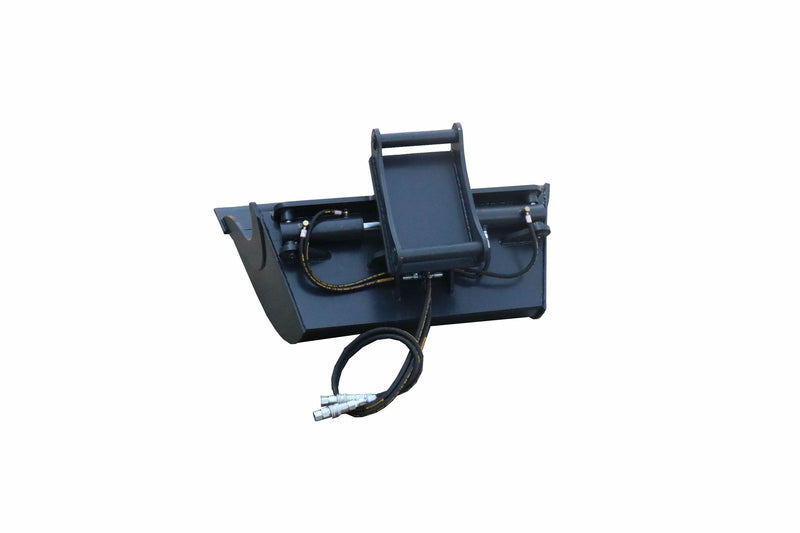

Sturdy and wear-resistant: Lehborit 5000 (500HB) cutting edge and side cutting edge, Including Hydraulic cylinder, pressurizing valve and hoses up to the tilting head.
Details
Features:
·Tilt Grading Bucket
·With Lehmatic adapter, Symlock adapter or direct suspension
·Wear-resistant cutting edge,Including Hydraulic cylinder and hoses up to the tilting head
Specifications:
|
Type |
Cylinder Qty. |
Dimension(WDH) / inch |
Main Plate Thickness / inch |
Rotation Angle(SA) / ° |
Operating Pressure / MPa |
Hydraulic Flow / LPM |
Bracket Type |
Weight / lb |
Suit Excavator / T |
|
ME-GB1000-1HY-S30 |
1 |
39.37 × 22.17 × 24.65 |
0.24 |
45 |
16 |
60 |
S30 |
227.08 |
1-2 |
|
ME-GB1320-1HY-S40 |
1 |
51.97 × 29.57 × 31.18 |
0.31 |
45 |
16 |
60 |
S40 |
255.74 |
2-3.5 |
|
E-GB1470-2HY-S50 |
2 |
57.87 × 37.68 × 35.24 |
0.39 |
45 |
16 |
60 |
S50 |
698.86 |
6-8 |
Technical Drawing:
