Product Overview

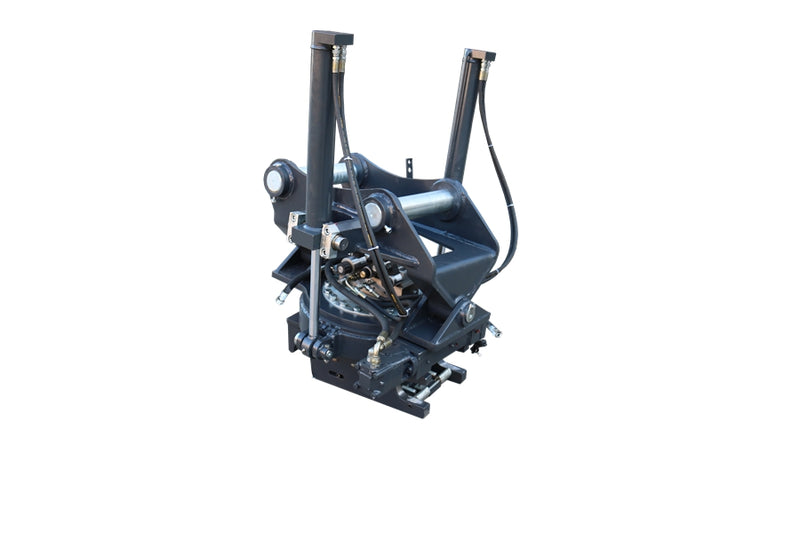

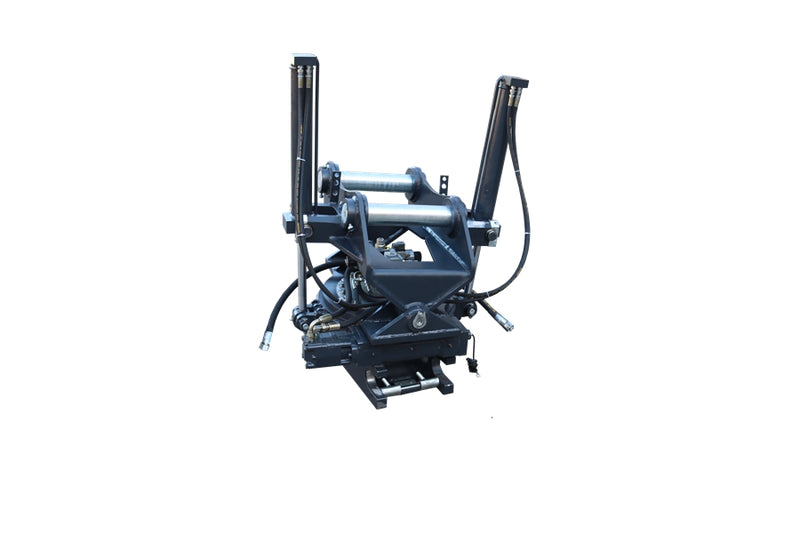

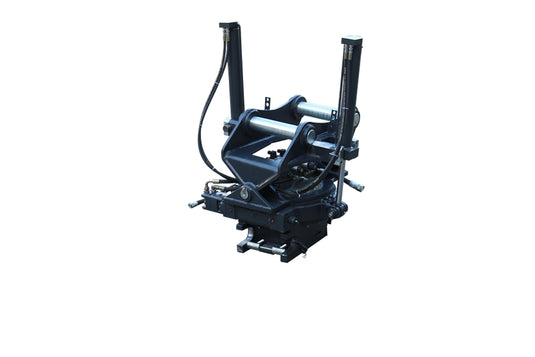

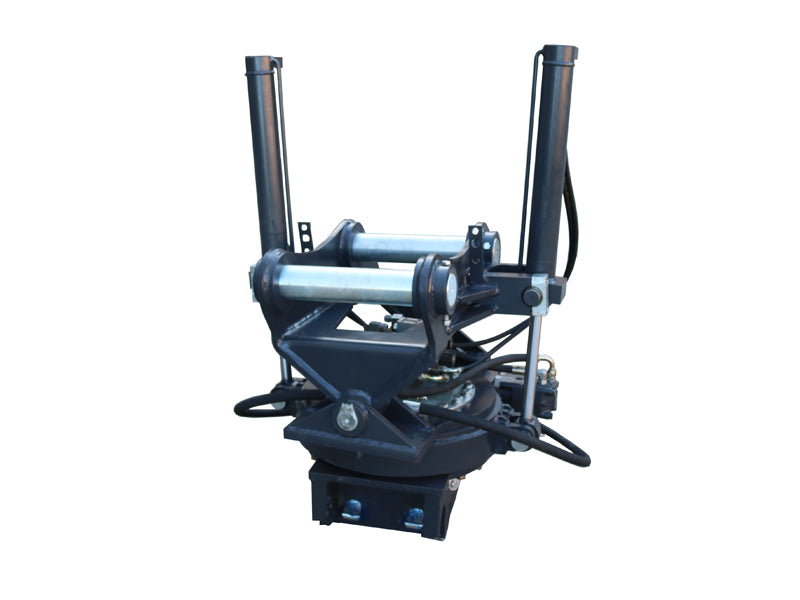

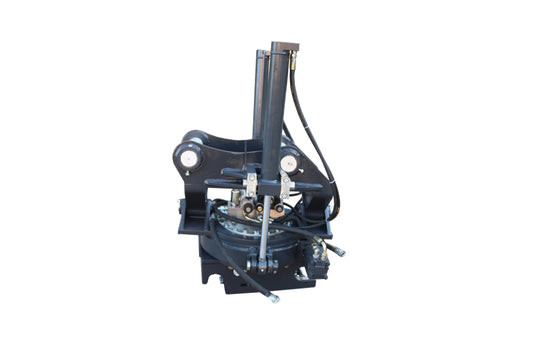

Tiltrotator for excavators and backhoe loaders between 7 and 10 tonnes
The tiltrotator is designed to deliver the power and durability that is a must for larger excavators. A well thought-out design, raw power, precision and smoothness are combined in 360° rotation, tilt and quick coupling functions. This facilitates your work and makes you flexible to take on a variety of challenging new jobs.
Details
Features:
·Tilt Rotator
·Gear housing, bottom and top in solid cast steel, hardened shafts and piston rods, dual acting tilt cylinders.
Specifications:
|
Type
|
Axle Base(A) / inch
|
Weight / lb
|
Suit Excavator / T
|
|
ME-X02-S30
|
9.07
|
198.42
|
1-2
|
|
ME-X04-S40
|
11.83
|
264.55
|
2-3.5
|
|
E-X07-S45
|
16.95
|
440.92
|
4-6
|
|
E-X12-S50
|
16.95
|
771.62
|
6-8
|
|
E-X18-S60
|
18.92
|
1102.31
|
10-14
|
|
E-X26-S70
|
23.64
|
1322.77
|
16-18
|
|
E-X32-S80
|
26.40
|
1873.93
|
20-25
|
Technical Drawing:
