Product Overview

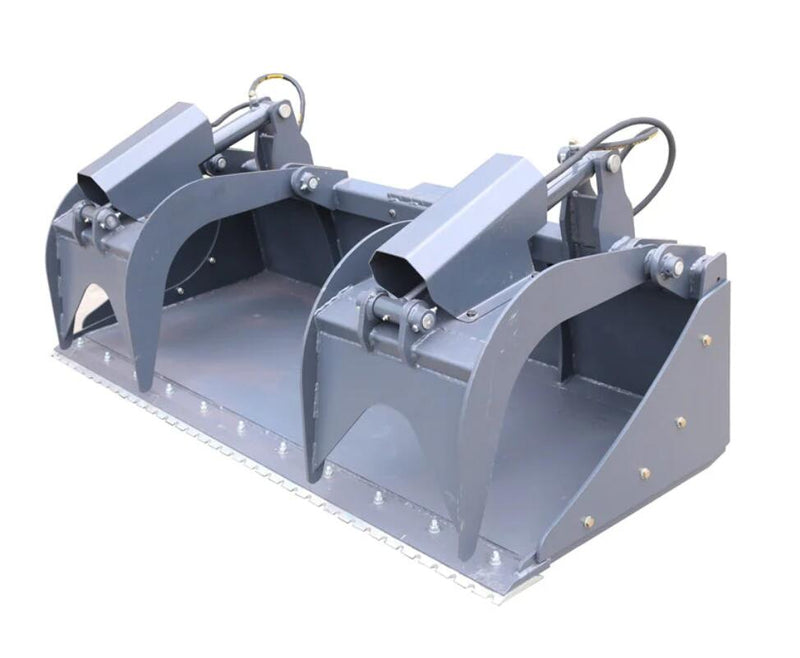

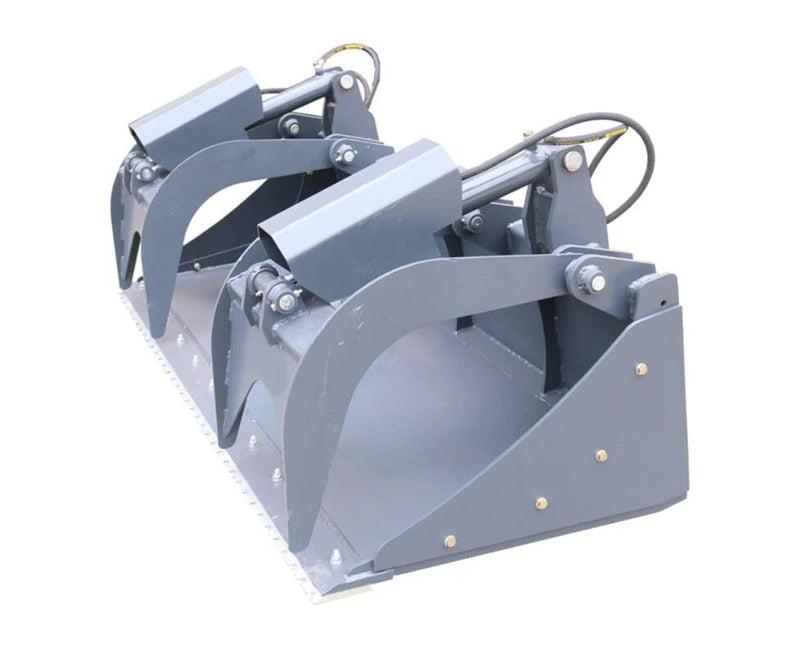

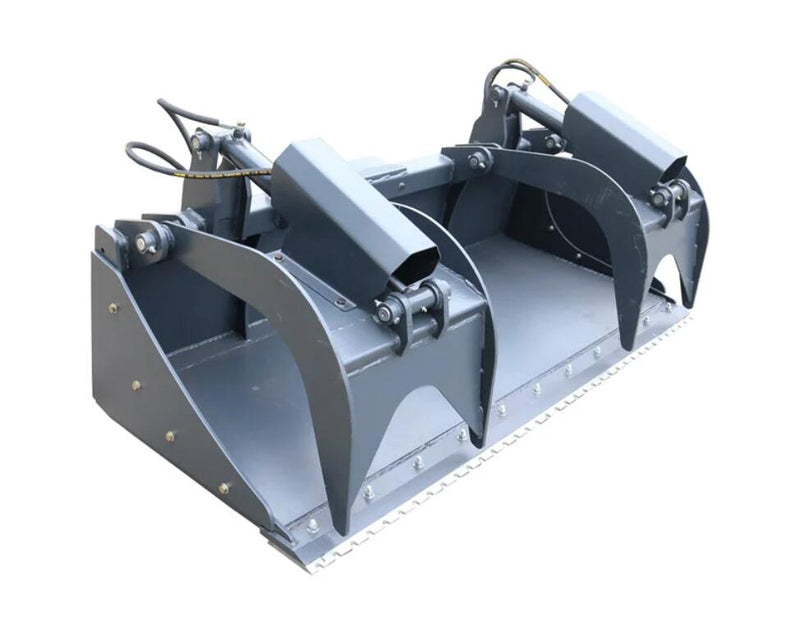

The grapple bucket attachment's basic design allows it to load and grapple large and/or uneven objects as well as clean up the smallest debris. We use 10mm reinforced body and 10mm tines with 20mm welded on cutting edge The grapple opening is 980mm.Supply with Cylinder protect cover as standard.
Details
Features:
·Grapple Bucket
·Enclosed cylinders/hoses for protection
·Deepened bucket, larger loading capacity
·Reinforced 1/2" ribbed bottom, 1/4" body, 1/2" tines
·2" bore/10" stroke cylinders; optional rod covers (special order)
·Tubing-routed hydraulic lines, wear-resistant
·Grease fittings at all pivot points
·20mm welded cutting edge (optional reversible bolt-on)
Specifications:
|
Type
|
SWL/lb
|
Dimension (W×D×H)/inch
|
Main Plate Thickness/inch
|
Opening Range(OR)/inch
|
Operating Pressure/MPa
|
Hydraulic Flow/LPM
|
Weight/lb
|
|
S-GB1600(63IN)-MP1140
|
2821.9
|
63.0 × 36.5 × 33.0
|
0.4
|
0.0-38.6
|
16
|
60
|
910.6
|
|
S-GB1700(67IN)-MP1140
|
2998.3
|
66.9× 36.5 × 33.0
|
0.4
|
0.0-38.6
|
16
|
60
|
939.2
|
|
S-GB1830(72IN)-MP1140
|
3505.3
|
72.0× 36.5 × 33.0
|
0.4
|
0.0-38.6
|
16
|
60
|
981.1
|
|
S-GB2160(85IN)-MP1140
|
3803.0
|
85.0× 36.5 × 33.0
|
0.4
|
0.0-38.6
|
16
|
60
|
1064.8
|
Technical Drawing:
