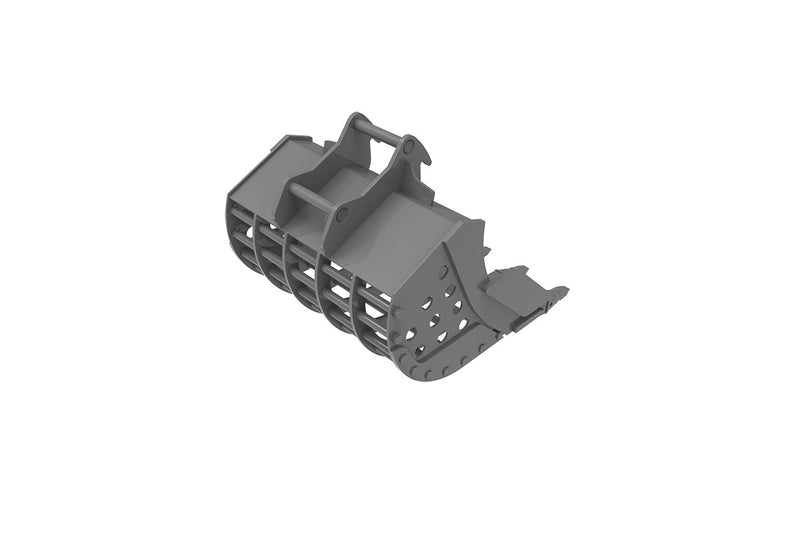

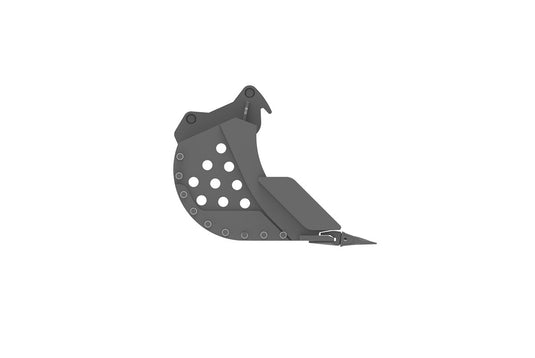

Product Overview
These Heavy Duty Skeleton Buckets are an indispensable tool for anyone involved in sorting or processing materials. They allow brick, concrete, stone, vegetation or any other debris to be separated from soil.
Details
Features:
·Heavy Duty Skeleton Bucket
·Complete side plate for type 02T. 03T and 18T.
Specifications:
|
Type
|
Dimension(WDH) / inch
|
Volume / m³
|
Bracket Type
|
Weight / lb
|
Suit Excavator / T
|
|
ME-02T.HDSB.600-S30
|
23.62 × 28.78 × 19.45
|
0.06
|
S30
|
138.89
|
1-2
|
|
ME-03T.HDSB.750-S40
|
29.53 × 38.19 × 25.20
|
0.13
|
S40
|
249.12
|
2-3.5
|
|
ME-06T.HDSB.900-S45
|
35.43 × 40.51 × 27.87
|
0.21
|
S45
|
365.97
|
4-6
|
|
E-08T.HDSB.900-S50
|
35.43 × 40.51 × 34.49
|
0.21
|
S50
|
531.31
|
6-8
|
|
E-14T.HDSB.1350-S60
|
53.15 × 57.56 × 45.12
|
0.79
|
S60
|
1821.02
|
10-14
|
|
E-18T.HDSB.1350-S70
|
53.15 × 60.55 × 49.92
|
0.91
|
S70
|
2142.89
|
16-18
|
|
E-18T.HDSB.1500-100-S70
|
59.06 × 66.85 × 50.16
|
1.03
|
S70
|
2266.35
|
16-18
|
|
E-18T.HDSB.1500-150-S70
|
59.06 × 60.55 × 49.92
|
1.03
|
S70
|
2314.85
|
16-18
|
|
E-18T.HDSB.1800-150-S70
|
70.87 × 60.55 × 49.92
|
1.25
|
S70
|
3538.42
|
16-18
|

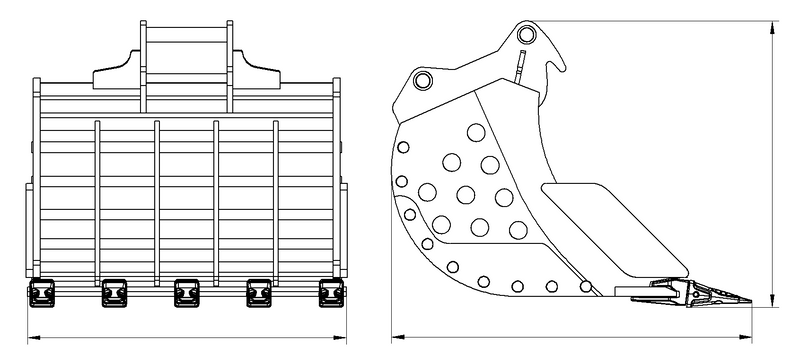

Technical Drawing:
