Product Overview

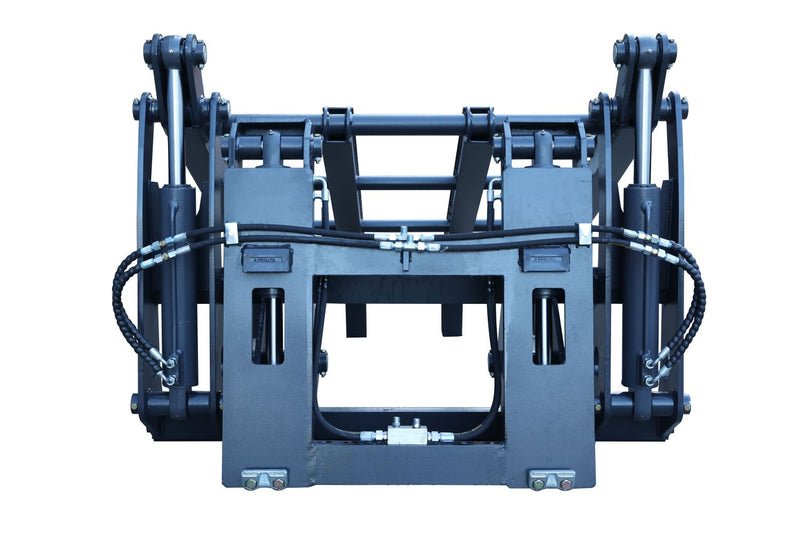

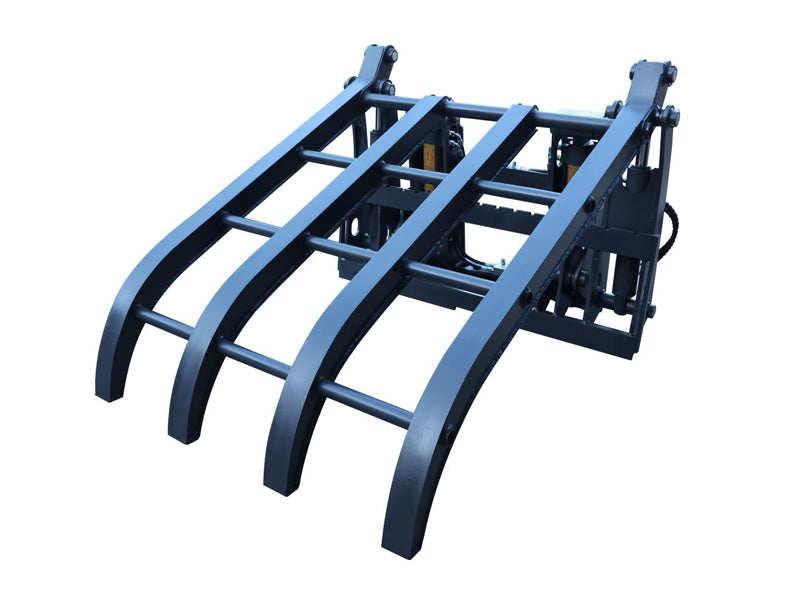

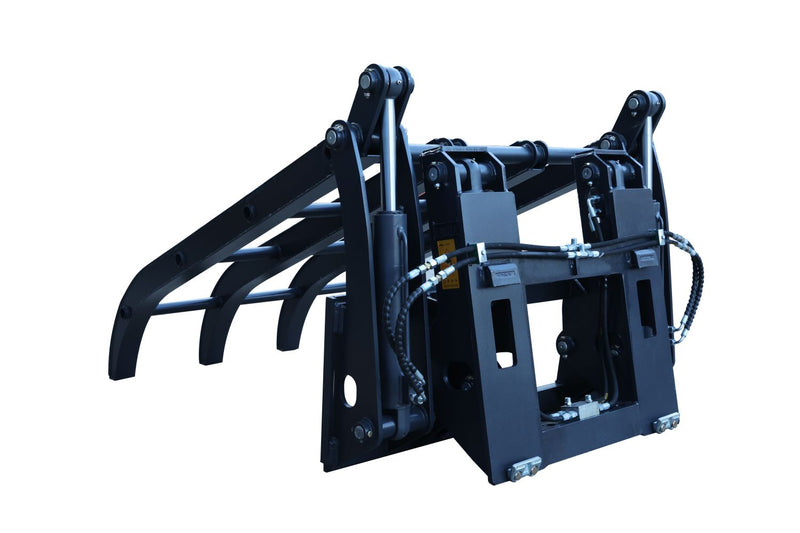

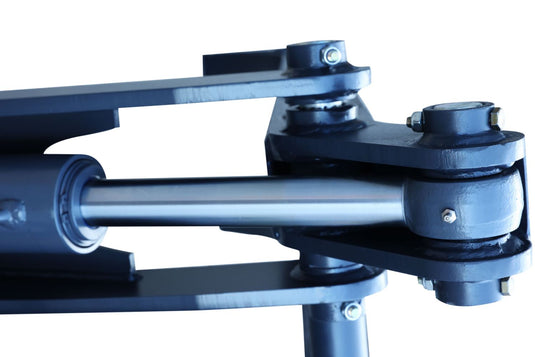

Suitable for all kinds of scrap iron, scrap, waste paper and other materials movement. The grabs that made of high-strength steel, with double cylinder and widened fork frame, which can hold the goods more smoothly and ensure the goods are not easy to fall off in the process of movement.
With hinged fork function, it can achieve 45° forward tilt and 25° backward tilt. It also can be configured to use the bucket on option, the operation function is more comprehensive. Shipping loose scrap iron, scrap, paper, etc.Please obtain the actual load capacity of the forklift/attachment from the forklift manufacturer.Requires 2 additional oil circuit for the forklift. Other size available on request.
Details
Features:
·Waste Grab-2 Cylinders
·Requires 2 additional oil circuit for the forklift
Specifications:
|
Type
|
Class
|
Dimension(WDH) (inch)
|
Fork Length (inch)
|
Opening Range(OR) (inch)
|
Tilt-forward/ Tilt-backward (°)
|
Operating Pressure (MPa)
|
Hydraulic Flow (LPM)
|
Weight (lb)
|
Suit Forklift/T
|
|
F-FLJ3A30-1500-1220-4
|
3A
|
59.06 × 62.91 × 44.88
|
48.03
|
0 - 90.94
|
45/25
|
16
|
60
|
1366.86
|
3-3.5
|
|
F-FLJ3A30-1500-1370-4
|
3A
|
59.06 × 72.01 × 46.34
|
53.94
|
0 - 99.02
|
45/25
|
16
|
60
|
1395.52
|
3-3.5
|
|
F-FLJ3A30-1500-1520-4
|
3A
|
59.06 × 75.00 × 47.91
|
59.84
|
0 - 104.13
|
45/25
|
16
|
60
|
1410.96
|
3-3.5
|
|
F-FLJ3A40-1500-1220-4
|
3A
|
59.06 × 62.91 × 44.88
|
48.03
|
0 - 90.94
|
45/25
|
16
|
60
|
1529.81
|
4-4.5
|
|
F-FLJ3A40-1500-1370-4
|
3A
|
59.06 × 72.01 × 46.34
|
53.94
|
0 - 99.02
|
45/25
|
16
|
60
|
1565.28
|
4-4.5
|
|
F-FLJ3A40-1500-1520-4
|
3A
|
59.06 × 75.00 × 47.91
|
59.84
|
0 - 104.13
|
45/25
|
16
|
60
|
1587.33
|
4-4.5
|
Technical Drawing:
