Product Overview

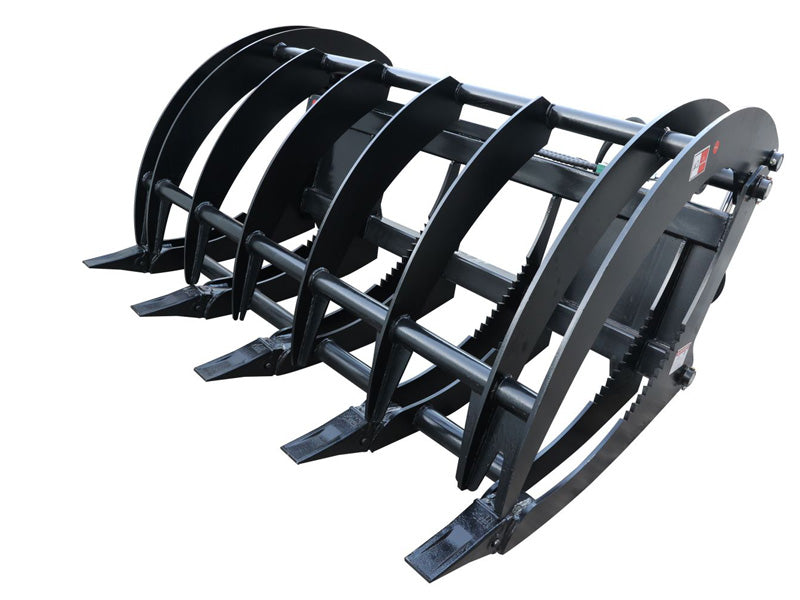

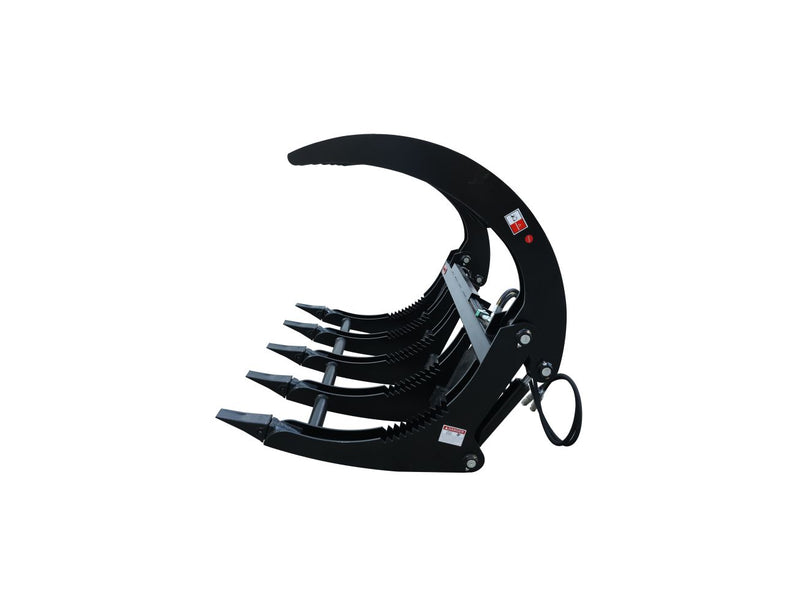

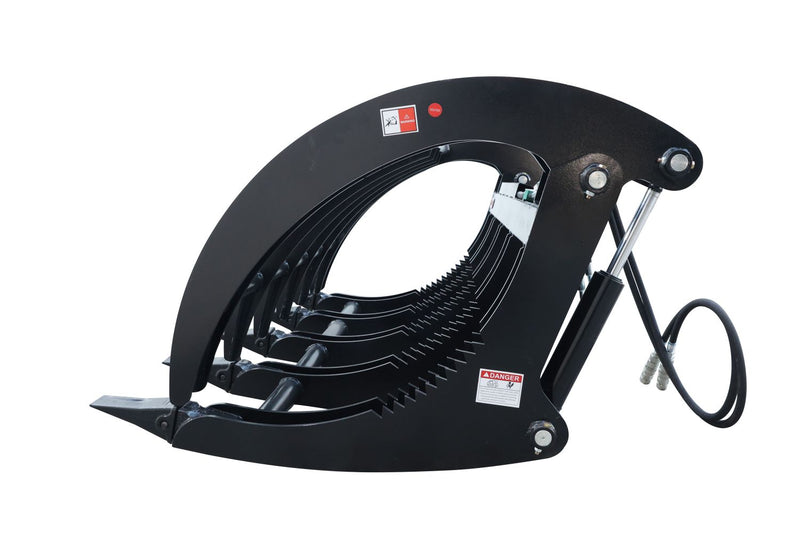

The Extreme Grapple Rake is ideal for picking up and moving rocks, logs, brush, debris, and other odd shaped or hard to lift material. The extra wide opening of the rake style grapple makes pushing and gripping large loads an ease. Replaceable cast bucket teeth.
Details
Features:
·Extreme Root Grapple Rake
·Greasable pins and bushings
·Hoses and flat faced couplers are included
·Twin 3,000 PSI cylinder
·Replaceable cast bucket teeth
Specifications:
|
Type
|
SWL/lb
|
Dimension (W×D×H)/inch
|
Teeth Length(Lt)/inch
|
Teeth Thickness/inch
|
Opening Range(OR)/inch
|
Operating Pressure/MPa
|
Hydraulic Flow/LPM
|
Weight/lb
|
|
S-ERGR1830(72IN)-MP1140
|
3505.3
|
72.0×53.6×38.1
|
35.4
|
0.5
|
19.3-50.0
|
16
|
60
|
1124.4
|
Technical Drawing:
