Product Overview

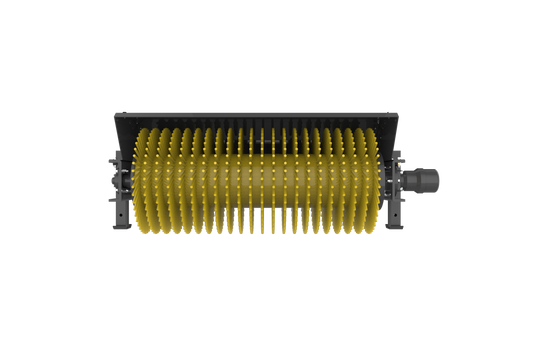

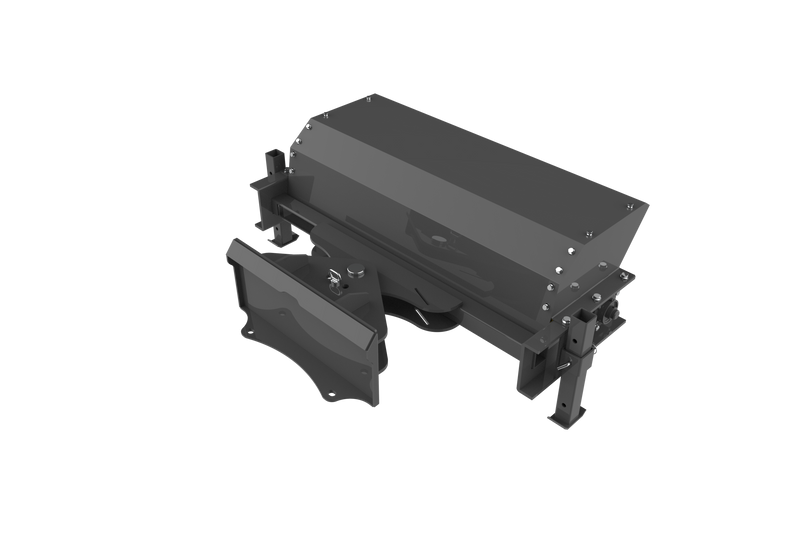

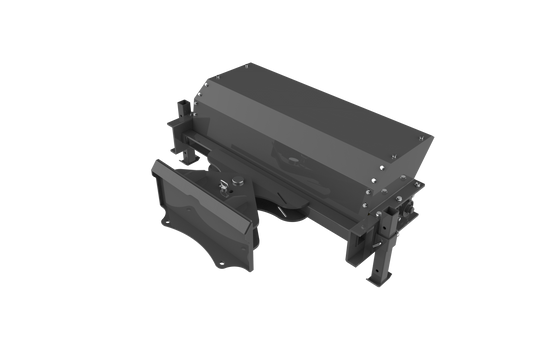

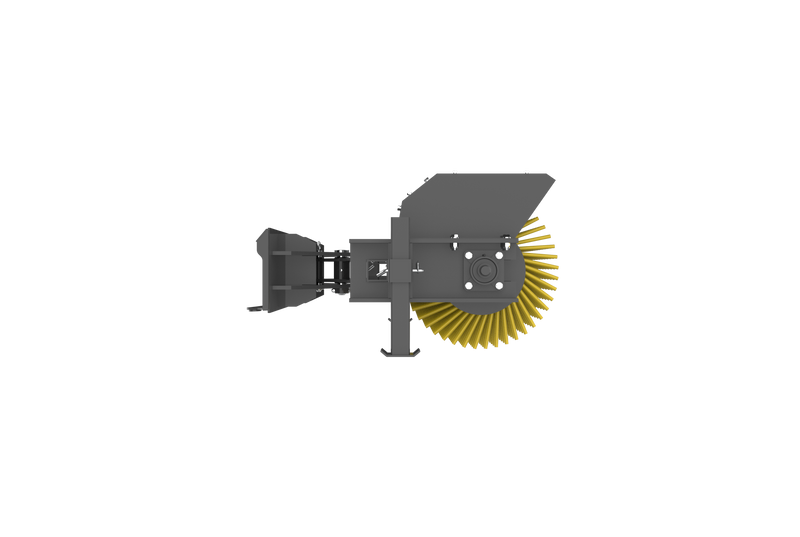

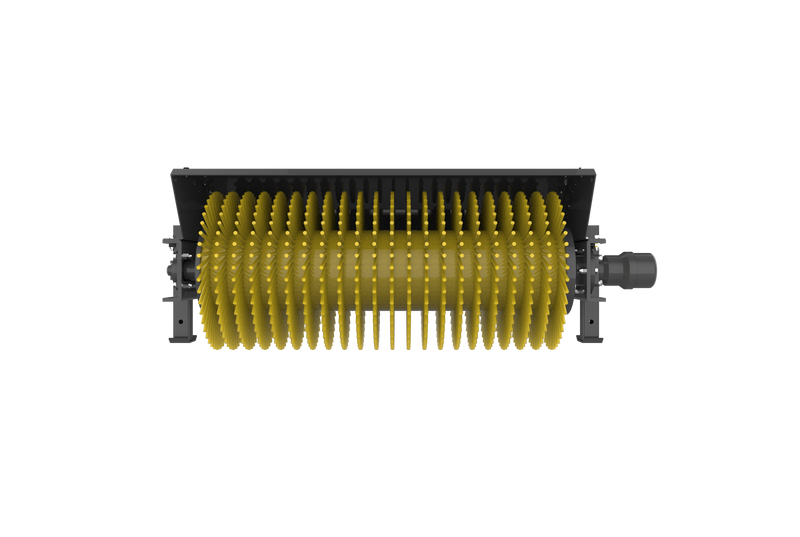

The Rotary Angle Broom is hydraulically driven and is ideal for an effective way to sweep away dirt, light snow and other debris. It quickly mounts to your mini skid steer loader.
Mini Skid Steer Angle Broom is hydraulically driven and is ideal for an effective way to sweep away dirt, light snow and other debris. It quickly mounts to your skid steer or tractor loader. Replacement brush offered on request.
Details
Features:
·Angle Broom - Tilt Manually
·Fits Mini Skid Steer quick attach
·For the effective clearing of debris, sand, snow
·Hydraulic drive
Specifications:
|
Type
|
Sweeping Width (SW)/inch
|
Dimension(LWH)/inch
|
Brush Dia.(d)/inch
|
Brush Qty
|
Tilt Angle(SA)/°
|
Operating Pressure/psi
|
Hydraulic Flow/GPM
|
Weight/lb
|
|
MS-AB1120(44IN)-MP600
|
44.09
|
56.30×45.94×23.43
|
21.65
|
22
|
30
|
2321
|
15.85
|
390.22
|
Technical Drawing:
