Product Overview

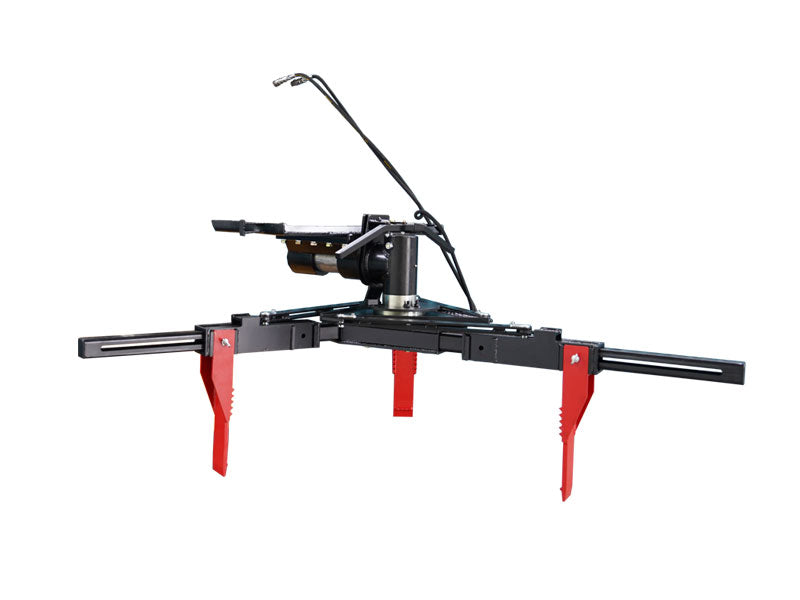

The Tire Grabber is a game-changing device that allows large equipment operators and owners to replace heavy industrial tires safely and easily.
Mounted to any equipment with a hydraulic source, the Tire Grabber’s extended-reach, three-arm gripper enables secure mounting, dismounting, and rotation of tires up to 1800kg.
Details
Features:
·Tyre Grabber
·Extended gripper 50°rotation for fast tire mounting/rotation, reducing wear
·Tool-free operation, safe & injury-proof (no forks/straps/chains)
·Grabs/swings/rotates tires for neat, space-saving stacking
·Streamlines heavy tire change, time & labor saving, low stress
Specifications:
|
Type |
SWL/lb |
Dimension (W×D×H)/inch |
Rotation Angle/° |
Opening Range (OR)/inch |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
S-TG4000-1370-2260 |
3968 |
94.8×43.3×90.4 |
±50 |
53.9-89.0 |
16 |
60 |
1283.1 |
Technical Drawing:
Scene graph:
