Product Overview

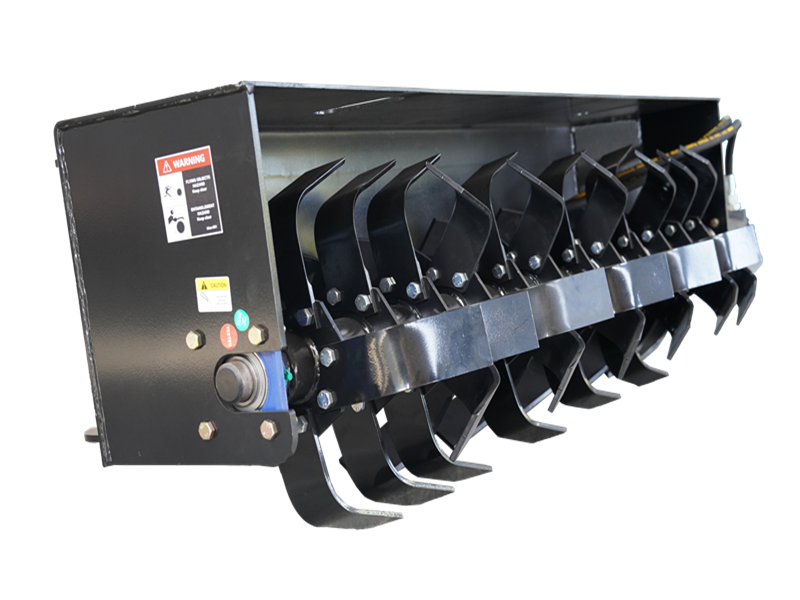

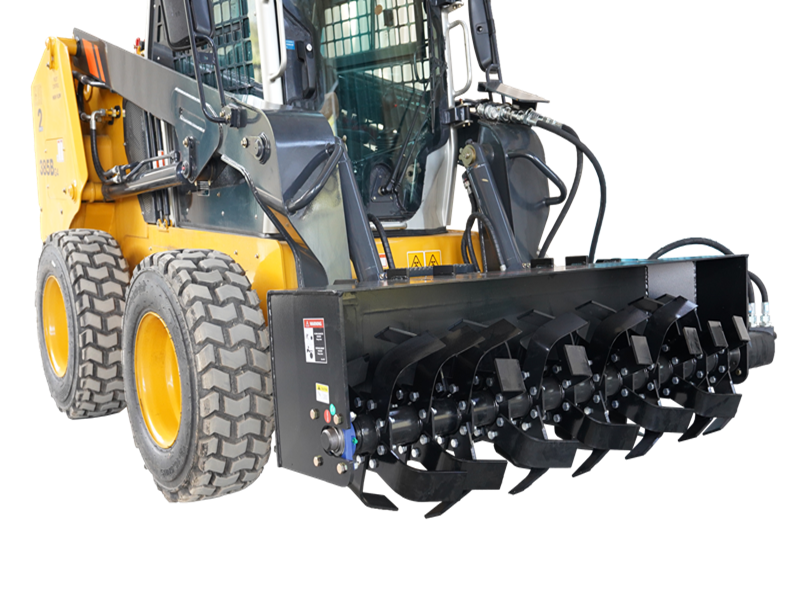

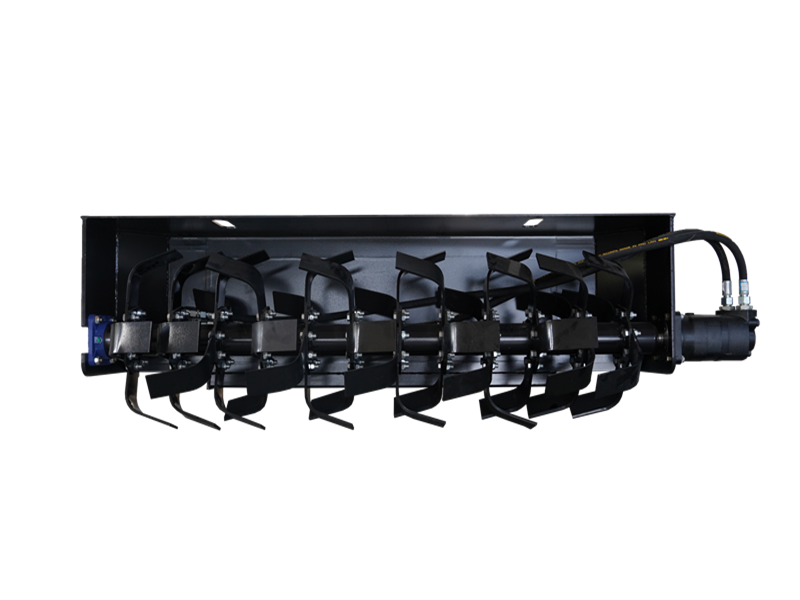

Skid Steer Garden Tiller that will fit most skid steers this is a very heavy duty made perfect for those gardens or breaking up the soil or sub soil.This tiller is a perfect attachment for tilling gardens and small fields. Hunters can make quick work of food plots, and firing lanes.
Details
Features:
·Garden Tiller
·Our Tiller is 72" wide, with 4" cut depth, and bi-directional tiller rotation for different types of soil.
·Features a direct drive motor with spline gear.
·Compatible with all low flow machines, and we offer multiple equipment hook ups.
Specifications:
|
Type |
Width (W)/inch |
Depth (D)/inch |
Height (H)/inch |
Flail Qty. |
Flail Thickness/mm |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
S-GT1830(72IN)-LD-MP1140 |
72.0 |
25.4 |
23.1 |
32 |
8 |
20 |
75 |
429.9 |
|
S-GT1830(72IN)-MP1140 |
72.0 |
25.4 |
23.8 |
48 |
8 |
20 |
75 |
685.6 |
Technical Drawing:
