Product Overview

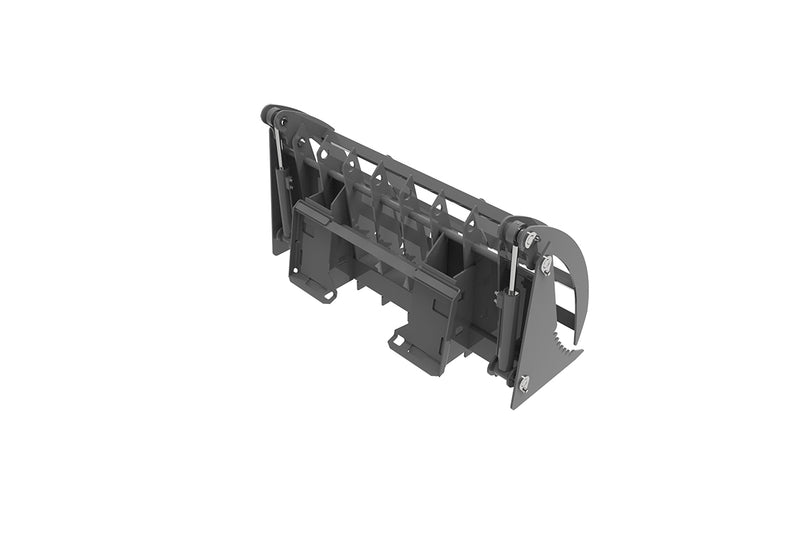

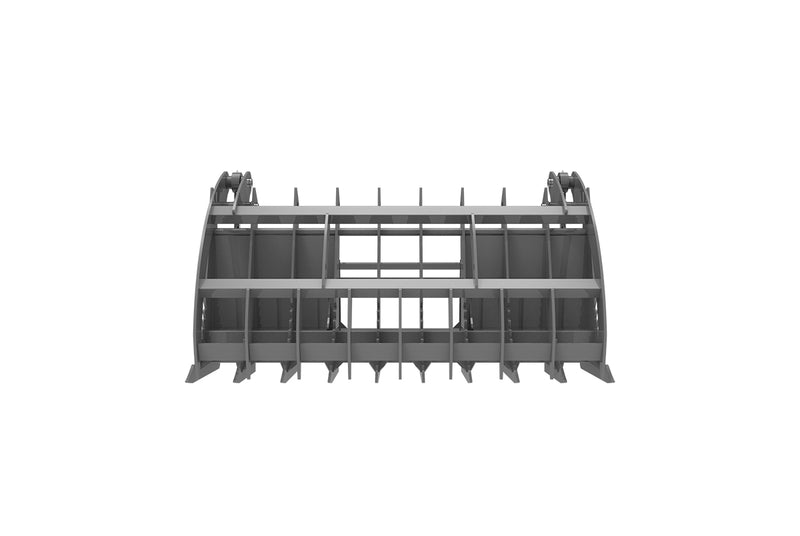

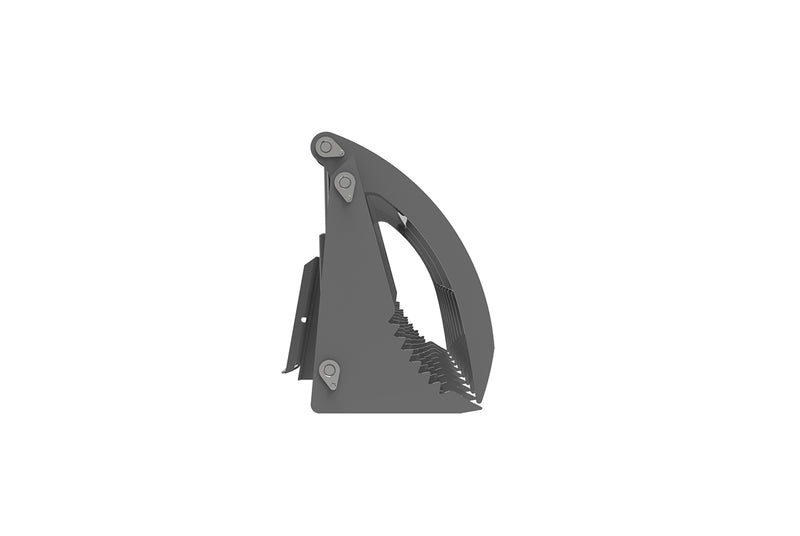

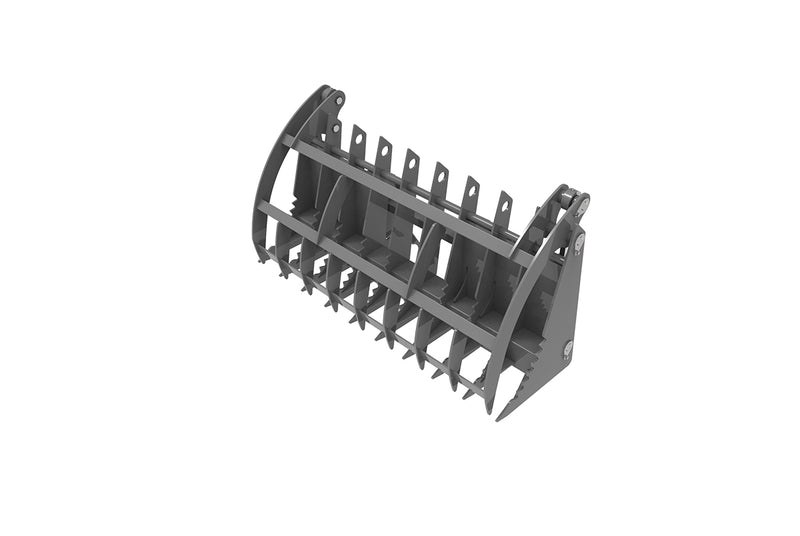

The 72IN Root Grapple Rake is ideal for picking up and moving brush tree tops, grabbing large bundles of branches, and clearing acres of forestry.
Details
Features:
·Root Grapple Rake
Specifications:
|
Type |
SWL(lb) |
Dimension(WDH)/inch |
Main Plate Thickness(inch) |
Opening Range(OR)/inch |
Operating Pressure(psi) |
Hydraulic Flow(GPM) |
Weight(lb) |
|
S-RGR1630(64IN)-MP1140 |
2491.22 |
64.17 × 31.42 × 38.58 |
0.47 |
0-42.91 |
2320.60 |
15.85 |
890.67 |
|
S-RGR1830(72IN)-MP1140 |
2899.08 |
72.01 × 31.42 × 38.58 |
0.47 |
0-42.91 |
2320.60 |
15.85 |
945.78 |
Technical Drawing:
