Product Overview

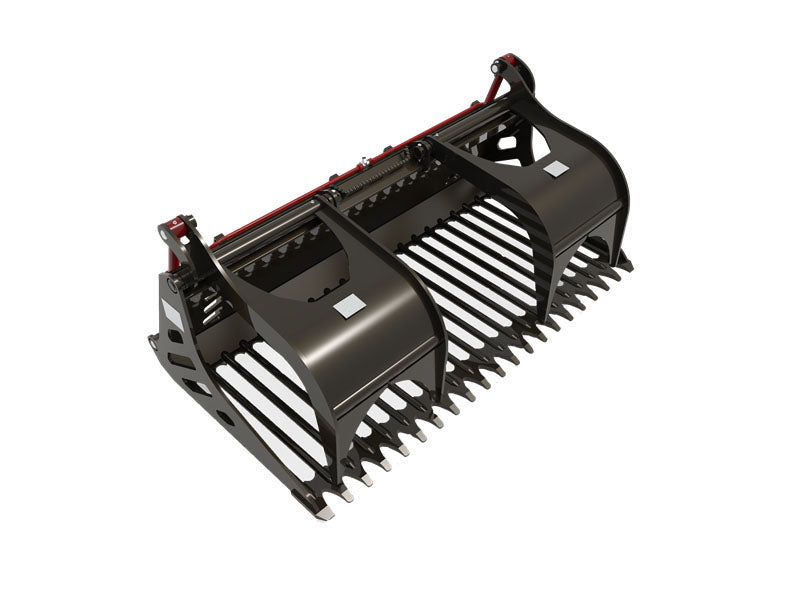

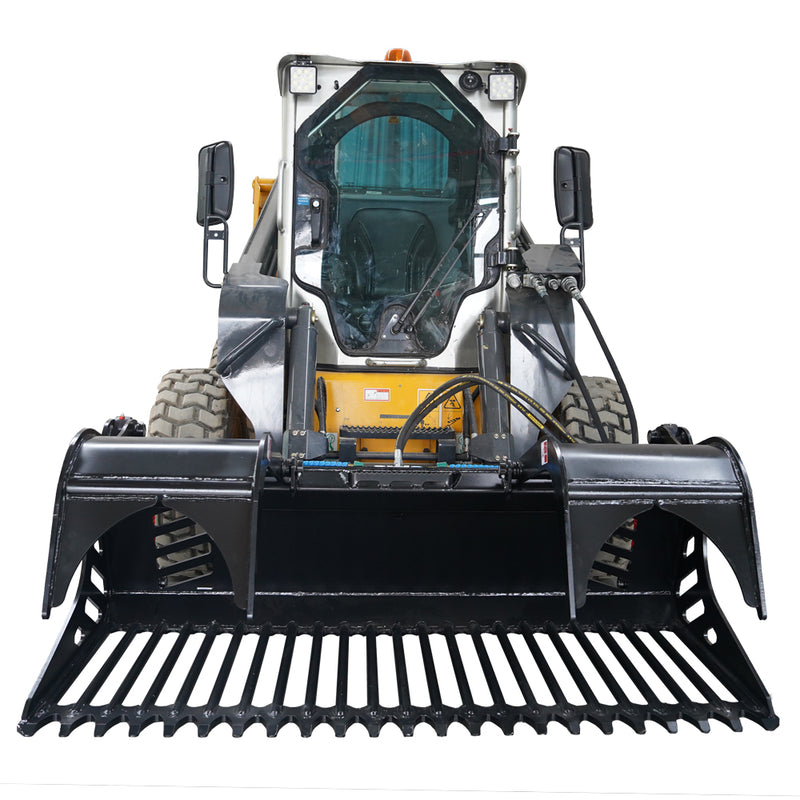

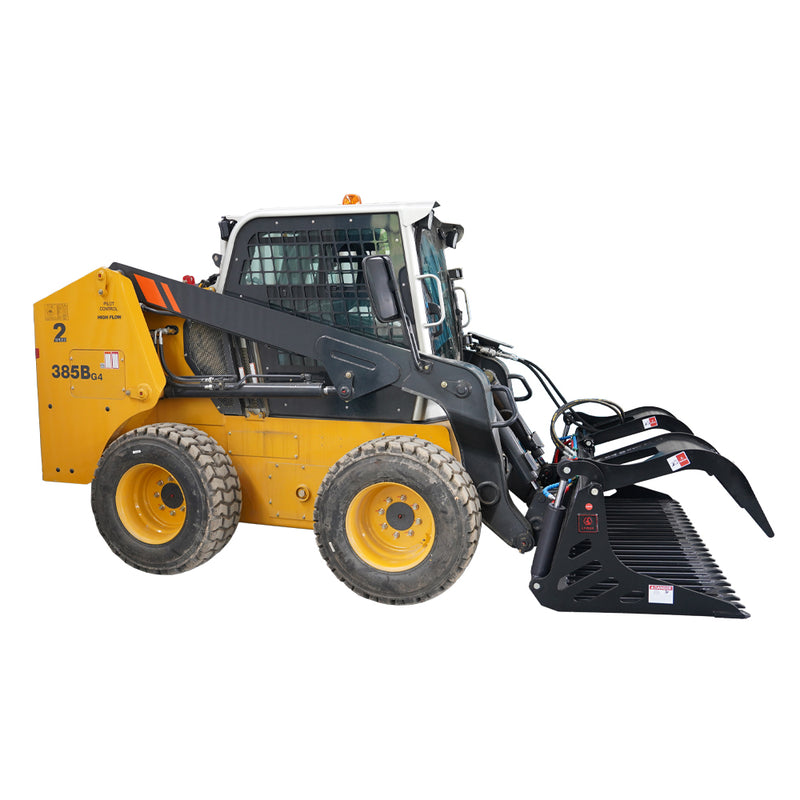

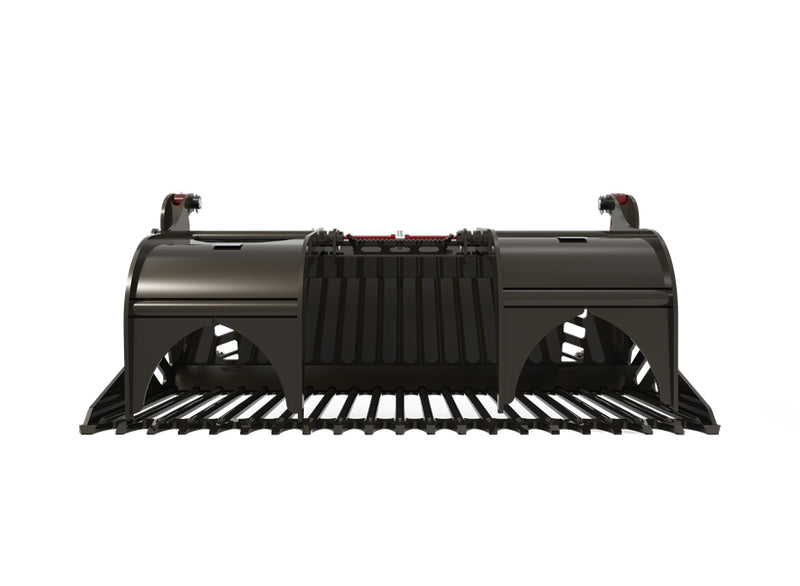

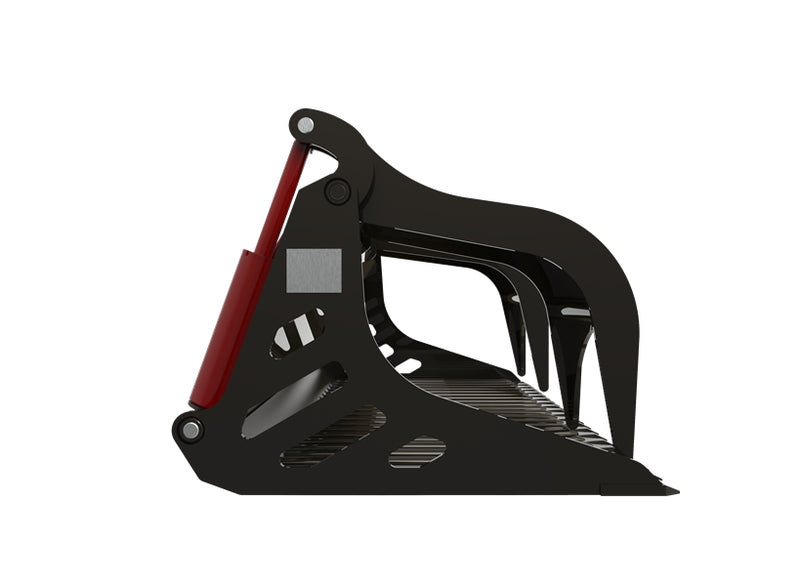

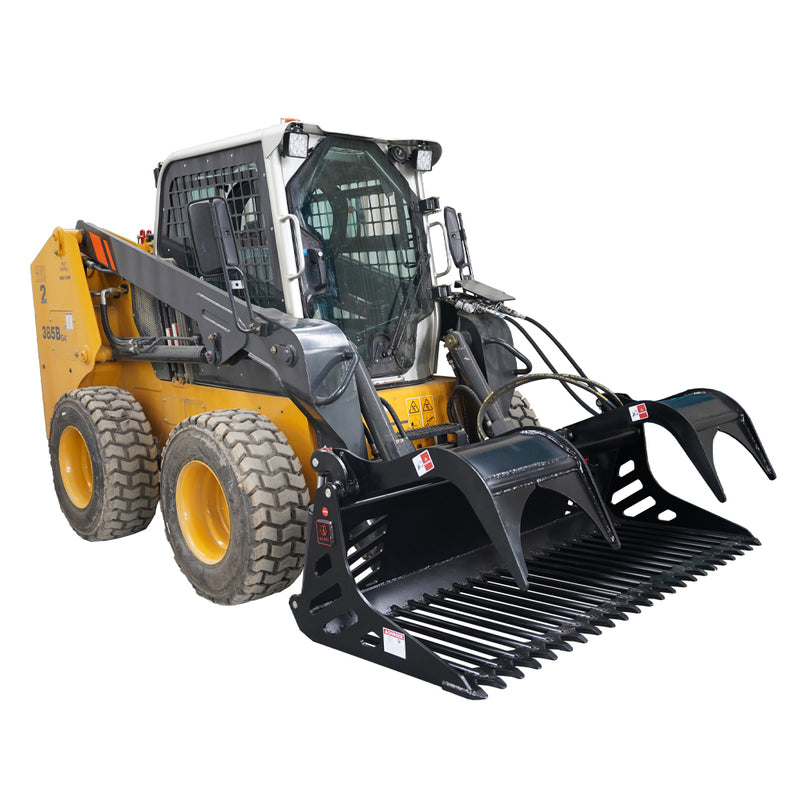

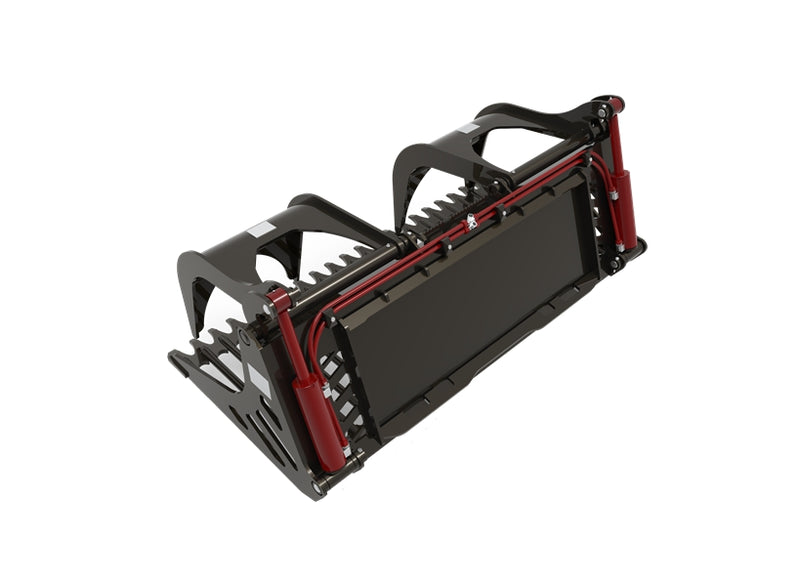

Hydraulically operated the grapple is fitted to the rock bucket to provide a grabbing arm to trap and contain debris. It is ideal for hard to handle loads such as demolition clean up logs, rock, shrubs, bushes and waste management.
Details
Features:
·Rod Rock Grapple Bucket
Specifications:
|
Type |
Dimension (W×D×H)/inch |
Harrow Dia./inch |
Opening Range(OR)/inch |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
S-RRGB1680(66IN)-MP1140 |
66.1×36.7 × 28.0 |
1.2 |
0.0-38.6 |
16 |
60 |
859.8 |
|
S-RRGB1780(70IN)-MP1140 |
70.1×36.7 × 28.0 |
1.2 |
0.0-38.6 |
16 |
60 |
877.5 |
|
S-RRGB1880(74IN)-MP1140 |
74.0×36.7 × 28.0 |
1.2 |
0.0-38.6 |
16 |
109 |
908.2 |
|
S-RRGB1980(78IN)-MP1140 |
78.0×36.7 × 28.0 |
1.2 |
0.0-38.6 |
16 |
60 |
956.8 |
|
S-RRGB2080(82IN)-MP1140 |
81.9×36.7 × 28.0 |
1.2 |
0.0-38.6 |
16 |
60 |
963.4 |
