Product Overview

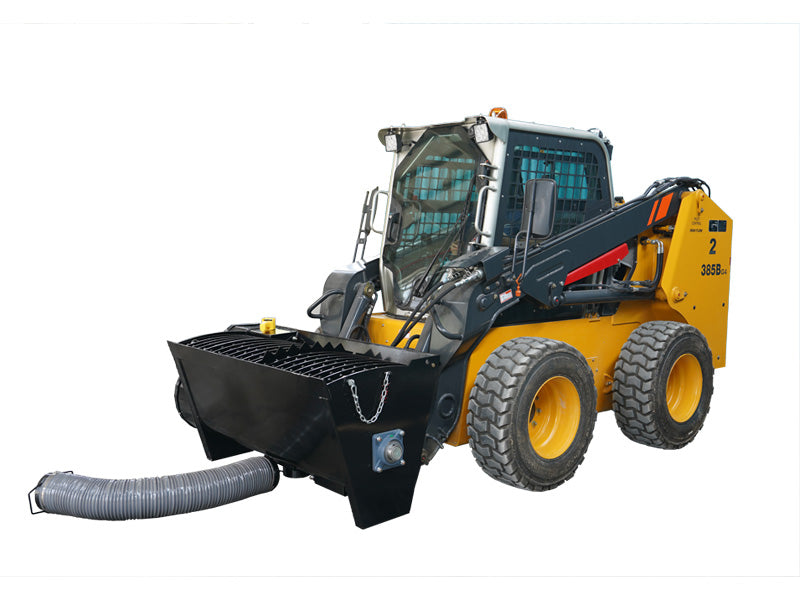

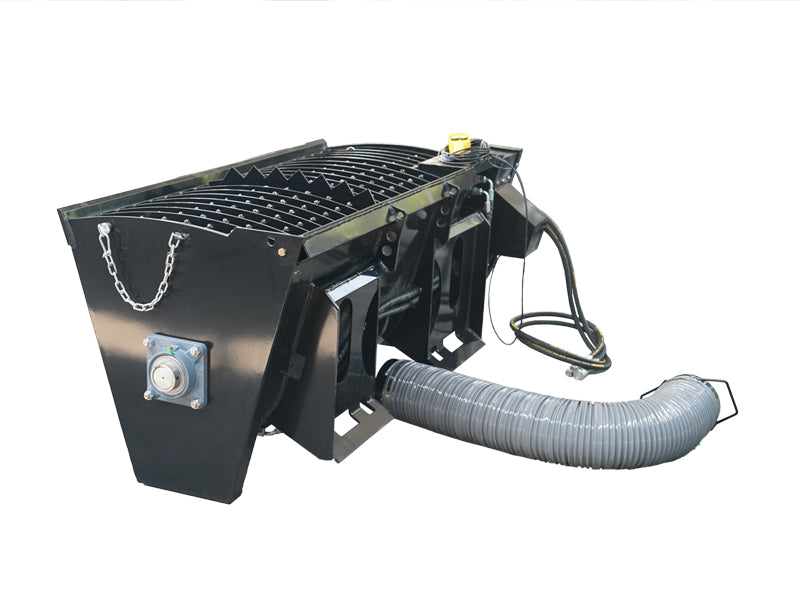

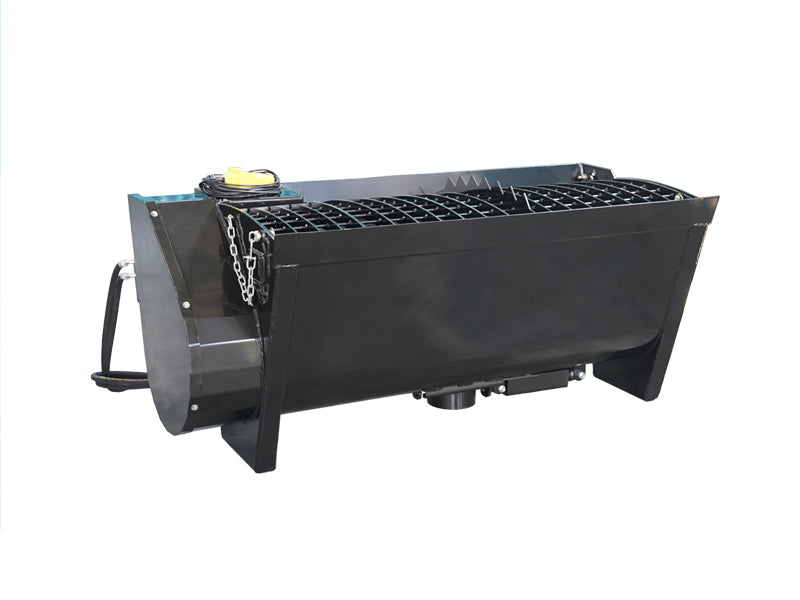

This Concrete Mixer Bucket make easy of Loading, mixing and delivering concrete across a work site.Mixing concrete has never been so simple with the ability to add cement powder quickly using the in-built bag breaker. With a hydraulic opening at the bottom of the attachment as well as a detachable unloading pipe, you have maximum control over each pour. Supply with a PVC Hose Dia. 180mm and Length 1250mm.
Details
Features:
·Concrete Mixer Bucket
·It comes with Hardox blades and bottom.
·It loads up the loose material like a normal bucket.
·After mixing it downloads the concrete through the central outlet or by tilting the bucket.

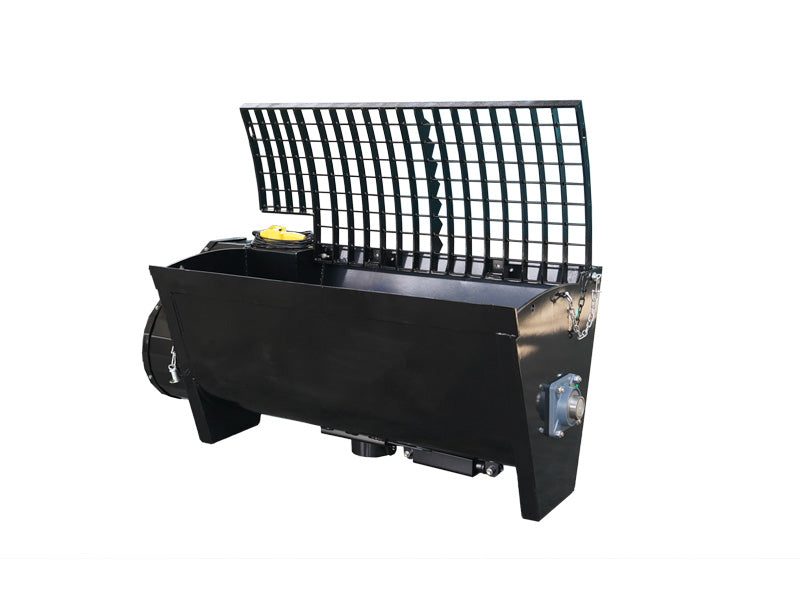

·The hinged front safety grid can be opened to clean up interior.
Specifications:
|
Type |
SWL/lb |
Dimension (W×D×H)/inch |
Main Plate Thickness/inch |
Outlet diameter/inch |
Volume/US gal |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
S-CMB280-MP1140 |
1455.1 |
47.2 × 37.7 × 33.9 |
0.2 |
6.5 |
73.97 |
12 |
80 |
743.0 |
|
S-CMB330-MP1140 |
1746.1 |
57.1× 37.7 × 33.9 |
0.2 |
6.5 |
87.18 |
12 |
80 |
794.7 |
|
S-CMB400-MP1140 |
2116.4 |
65.0× 37.7 × 33.9 |
0.2 |
6.5 |
105.67 |
12 |
80 |
831.2 |
|
S-CMB550-MP1140 |
2910.1 |
65.0× 37.7 × 33.9 |
0.3 |
6.5 |
145.29 |
12 |
80 |
1107.7 |
Technical Drawing:
Scene graph:
