Product Overview

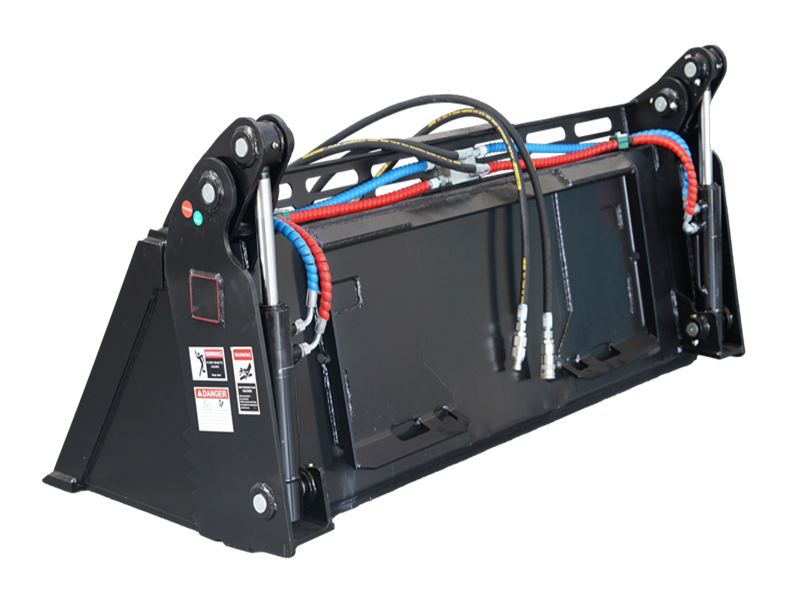

Multi-purpose Bucket ideal for dumping, loading, digging, leveling, grappling, and dozing. High-tensile 20 mm base steel floor.
Details
Features:
·4 In 1 Bucket
·high-tensile 20 mm base steel floor;
·Hardox steel bolt on front cutting edge
·Clear vision of both front and back bucket edge;
·With a universal skid steer quick hitch
·Custom width or sizes as request
Specifications:
|
Type |
Dimension (W×D×H)/inch |
Main Plate Thickness/inch |
Volume/ft³ |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
S-4IN1B1580(62IN)-MP1140 |
62.2×28.8×30.8 |
0.5 |
21.89 |
16 |
60 |
701.1 |
|
S-4IN1B1830(72IN)-MP1140 |
72.0×28.8×30.8 |
0.5 |
25.43 |
16 |
60 |
767.2 |
Technical Drawing:
Scene graph:
