Product Overview

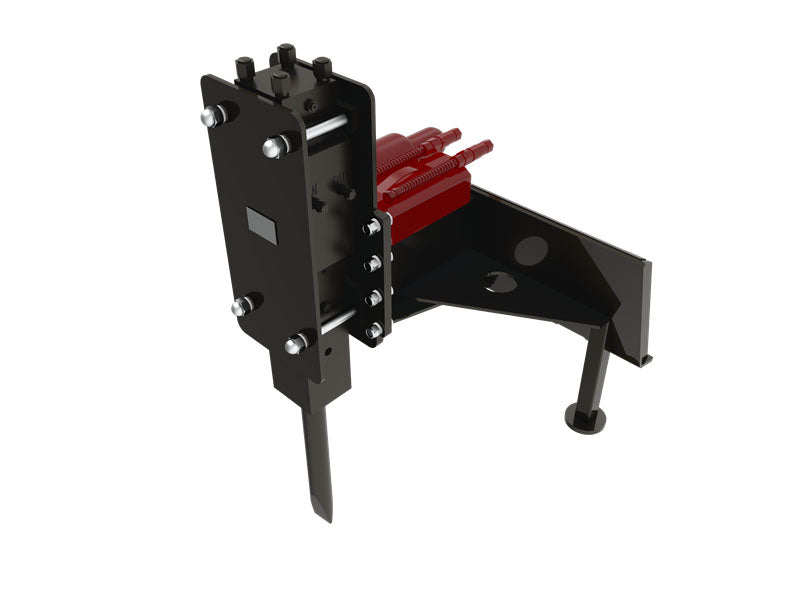

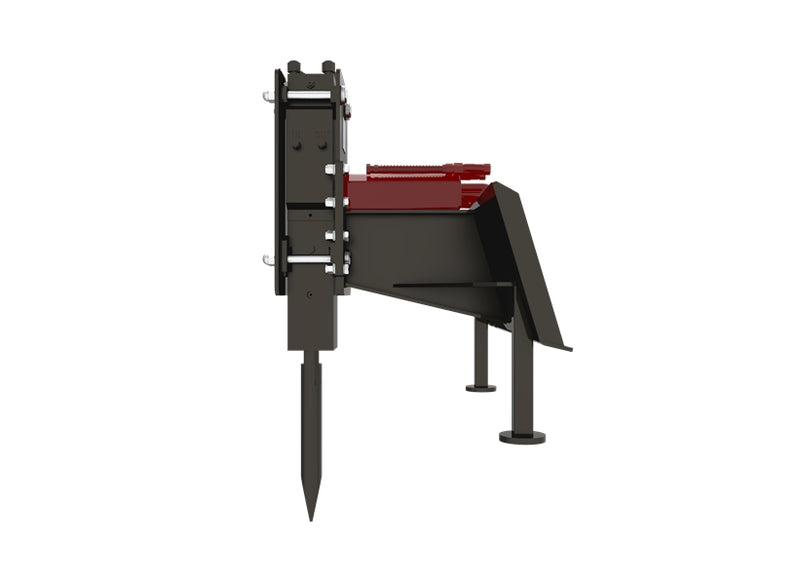

The Skid Steer Breaking Hammer is versatile and can be applied to various tasks, including construction, demolition, metal forging, and quarrying.
When attached to a loader skid steer, the hammer is used to break asphalt, rocks, small concrete structures, and other hard materials both indoors and outdoors.Hydraulic breaker is a top choice for most contractors because it is efficient in earthworks and reliable when removing concrete piers and decks for demolition projects. Supply with 3 tools as standard, Cone, Flat and Drive cup.
Details
Features:
·Breaking Hammer
·Hydrostatic piston drive
·High-speed impact drill rod
Specifications:
|
Type |
Dimension (W×D×H)/inch |
Tool Dia. (Dt)/inch |
Movement Type |
Operating Pressure/psi |
Hydraulic Flow/GPM |
Impact Frequency/BPM |
Weight/lb |
|
CS-VBH530-MP910 |
36.38×31.73×56.02 |
2.09 |
TRB530 |
1740.46 |
13.21 |
600-1100 |
630.42 |
Technical Drawing:
