Product Overview

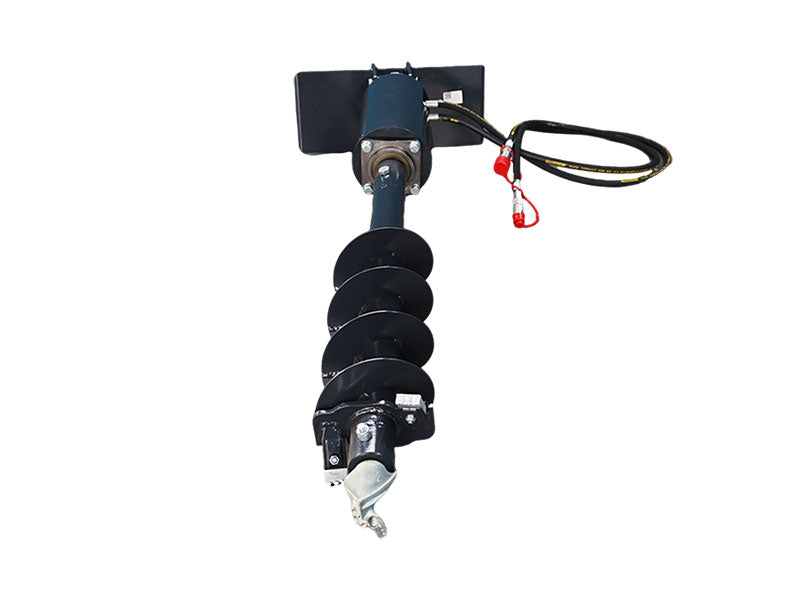

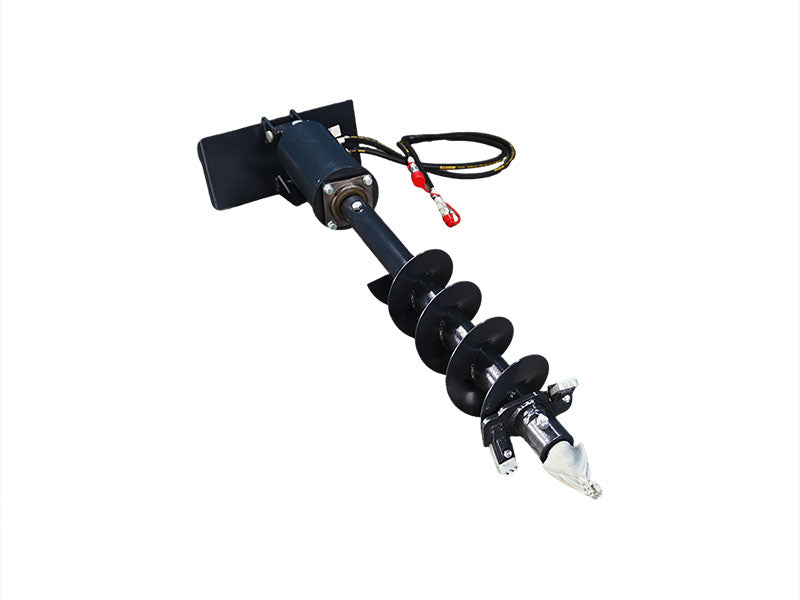

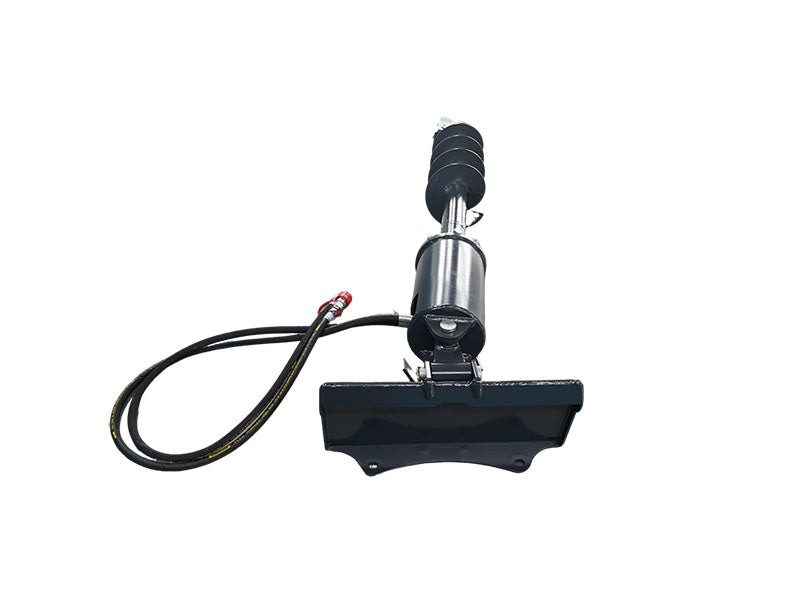

Mini Skid Steer Post Hole Drive Attachment,takes the effort out of digging the right sized hole for the task at hand. A hydraulic motor drives the auger through a sealed planetary gear reduction. The heavy duty all gear design of our planetary drives gives these units a long life with minimal maintenance and service costs.
Details
Features:
·Drive Auger
·Perfect for digging holes to plant trees, install fence posts & more
·Fits Universal Mini Skid Steer Quick Attach
·Direct Drive Through Planetary Gear
·2" Hex
·Mounting Plate, Hoses and Couplings Included
Specifications:
|
Type |
Stem Qty. |
Dimension (L×W×H)/inch |
Drill pipe Length/inch |
Auger Dia./inch |
Auger Thickness/inch |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
MS-AG23-(D230L1160T4)-MP600 |
1 |
68.90×24.41×42.83 |
45.67 |
9.06 |
0.16 |
16 |
75 |
240.12 |
|
MS-AG23-(D300L1160T4)-MP600 |
1 |
68.90×24.41×42.83 |
45.67 |
11.81 |
0.16 |
16 |
75 |
275.58 |
Technical Drawing:
