Product Overview

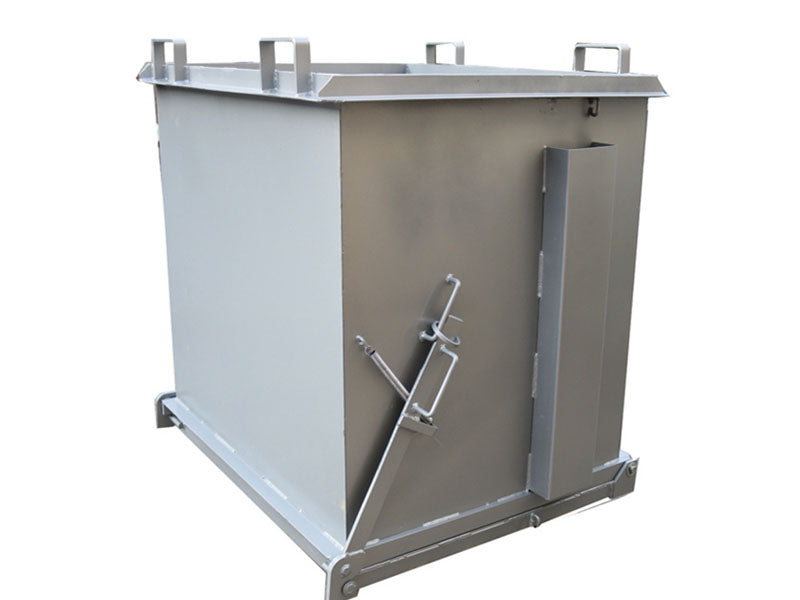

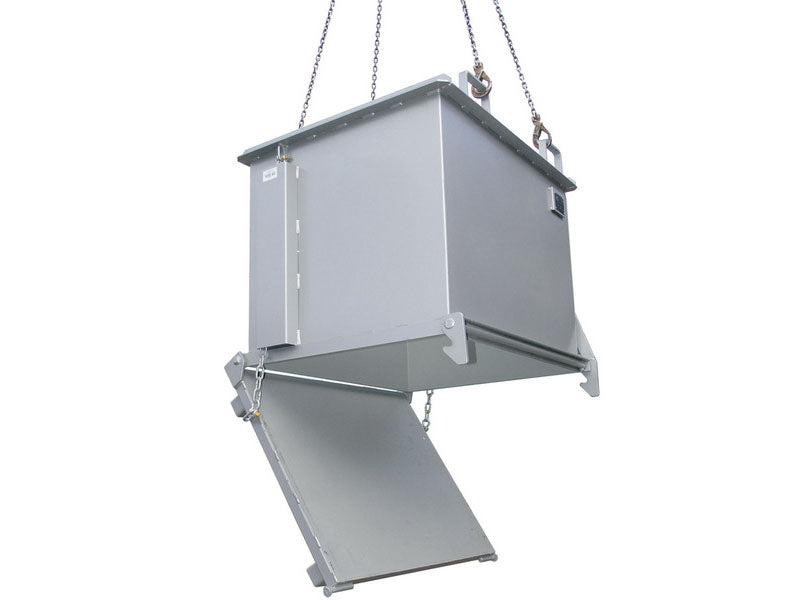

This bin is reinforced to handle all types of solid waste product.Able to be transported by either forklift or crane, emptying is carried out by pulling the draw rope handle which allows the floor to drop open from one side, allowing complete emptying. Shock absorbing system removes all impact from forklift or crane during emptying.
Details
Features:
·Drop Bottom Bin
·Enamel painted finish
Specifications:
|
Type |
SWL/lb |
Dimension(LWH)/inch |
Main Plate Thickness/inch |
Pocket Size(ab)/inch |
Pocket Centres/inch |
Volume/ft³ |
Weight/lb |
|
WS-DB500 |
2204.62 |
47.24 × 40.35 × 29.33 |
0.12 |
6.30 × 4.33 |
26.93 |
17.66 |
374.79 |
|
WS-DB800 |
2204.62 |
47.24 × 40.35 × 41.14 |
0.12 |
6.30 × 4.33 |
26.93 |
28.25 |
454.15 |
|
WS-DB1100 |
2204.62 |
47.24 × 40.35 × 56.10 |
0.12 |
6.30 × 4.33 |
26.93 |
38.85 |
518.09 |
Technical Drawing:
