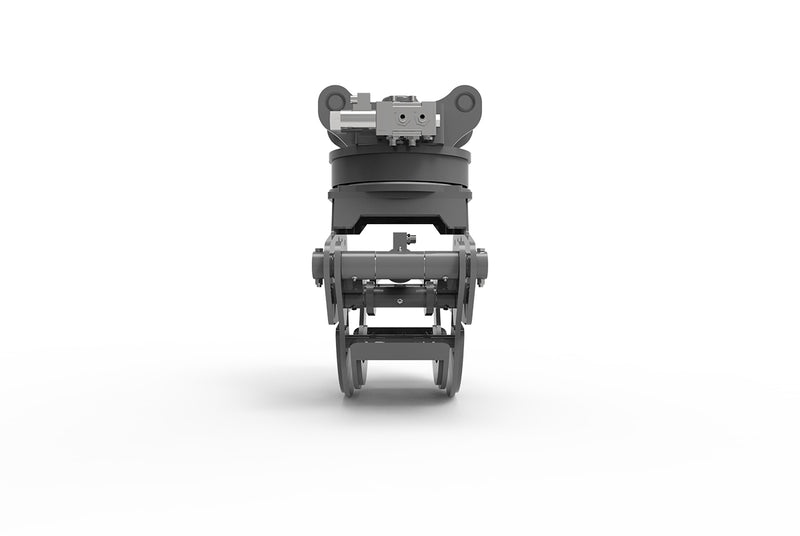

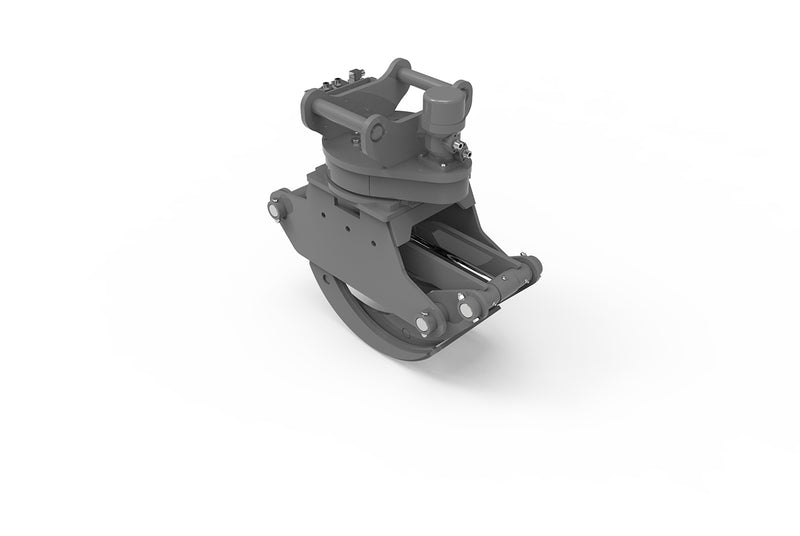

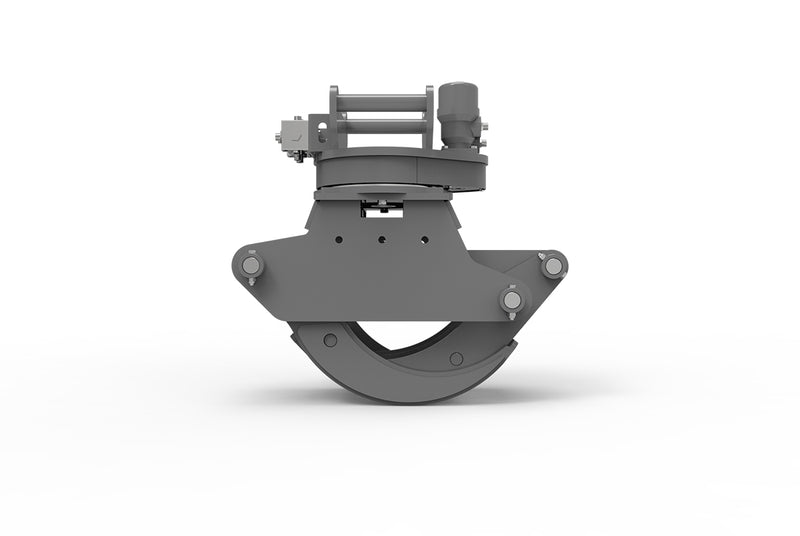

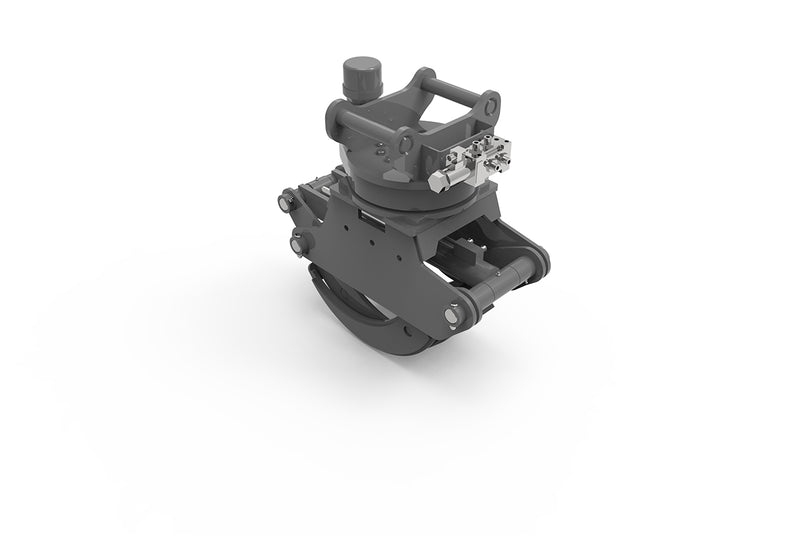

Product Overview
The 360° Rotating Timber Grab is the perfect excavator attachment for forestry applications. It is designed for strength and durability. The powerful hydraulic motor, working in conjunction with the heavy-duty slew ring and pinion, provides the log grab with full 360° rotation.
Details
Features:
·360° Rotating Timber Grab
·Featuring a sturdy hydraulic rotator
Specifications:
|
Type |
Dimension(WDH) / inch |
Opening Range (OR) / inch |
Operating Pressure / MPa |
Hydraulic Flow / LPM |
Bracket Type |
Weight / lb |
|
ME-TG22S-S40-360° |
31.26 × 14.25 × 30.51 |
3.74 - 51.97 |
16 |
60 |
S30 |
423.29 |
|
ME-TG22S-S40-360° |
31.26 × 14.25 × 30.87 |
3.74 - 51.97 |
16 |
60 |
S40 |
460.77 |
|
E-TG42S-S60-360° |
44.80 × 23.74 × 40.91 |
5.12 - 82.28 |
16 |
60 |
S60 |
1461.66 |
Technical Drawing:
