Product Overview

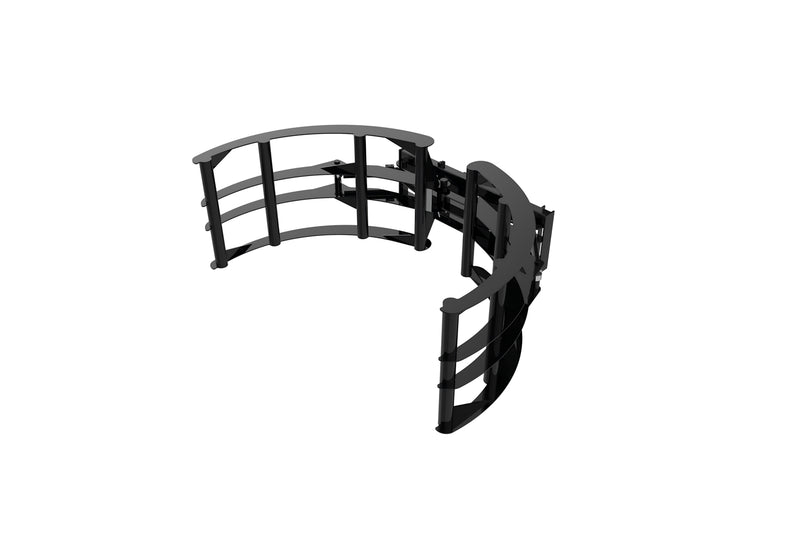

Hay Bale Grapple is a great attachment for moving or stacking large quantities of hay quickly and efficiently. This attachment can also stack two bales at a time and handles 1220mm to 1830mm round bales.
Details
Features:
·Bale Grab
·Dual-bale stacking, compatible with 4'-6' round bales
Specifications:
|
Type |
SWL/lb |
Dimension (W×D×H)/inch |
Opening Range (OR)/inch |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
S-HBG(300-3300)-MP1140 |
2866.0 |
56.69 × 80.20 × 35.43 |
37.40–86.61 |
16 |
60 |
791.45 |

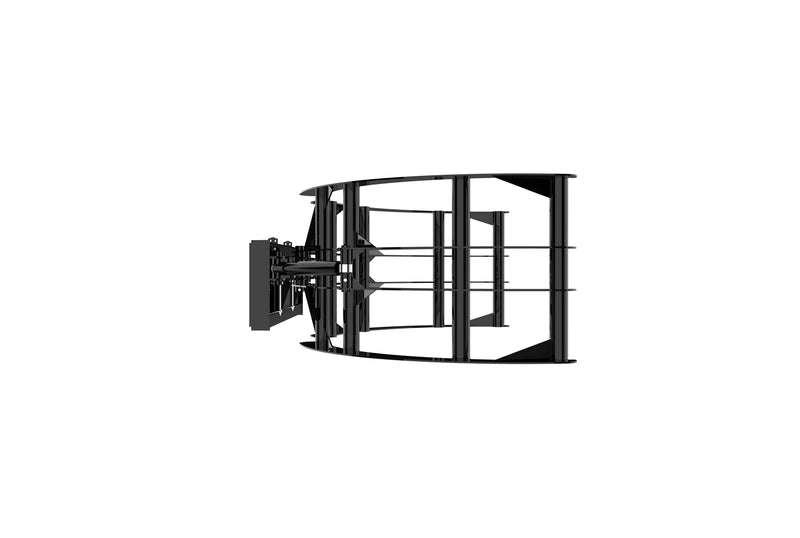

Technical Drawing:

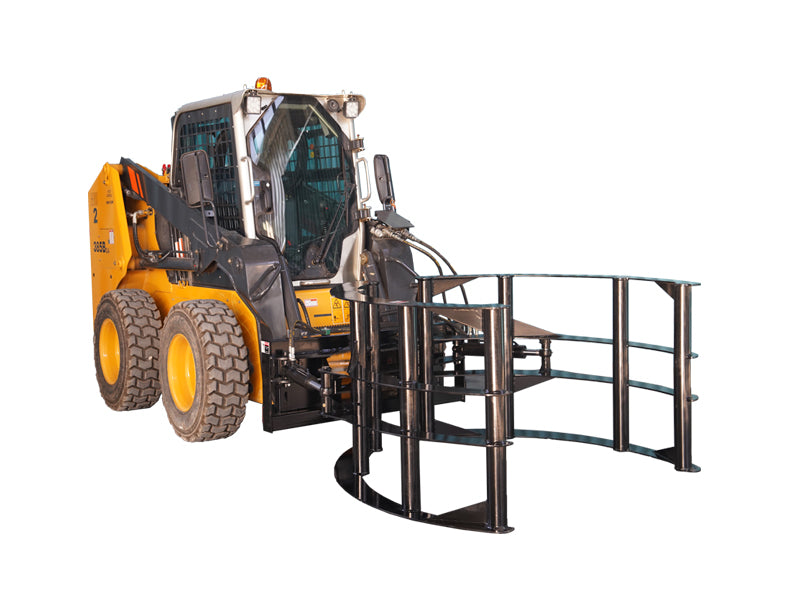

Scene graph:
