Product Overview
Multi-purpose Bucket ideal for dumping, loading, digging, leveling, grappling, and dozing. High-tensile 20 mm base steel floor.
Details
Features:
·4 In 1 Bucket
·Bolt on front cutting edge available for option.
Specifications:
|
Type
|
Dimension (WDH)/inch
|
Volume/m³
|
Main Plate Thickness/inch
|
Rotation Angle/°
|
Operating Pressure/MPa
|
Hydraulic Flow/LPM
|
Attachment
|
Weight/lb
|
|
T-4IN1B1980(78IN)-EURO
|
77.95×28.58×30.83
|
0.33
|
0.47
|
80
|
16
|
60
|
EURO
|
855.39
|

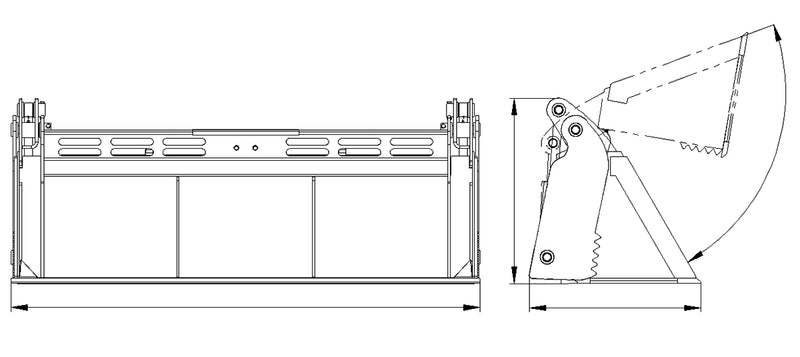

Technical Drawing:
