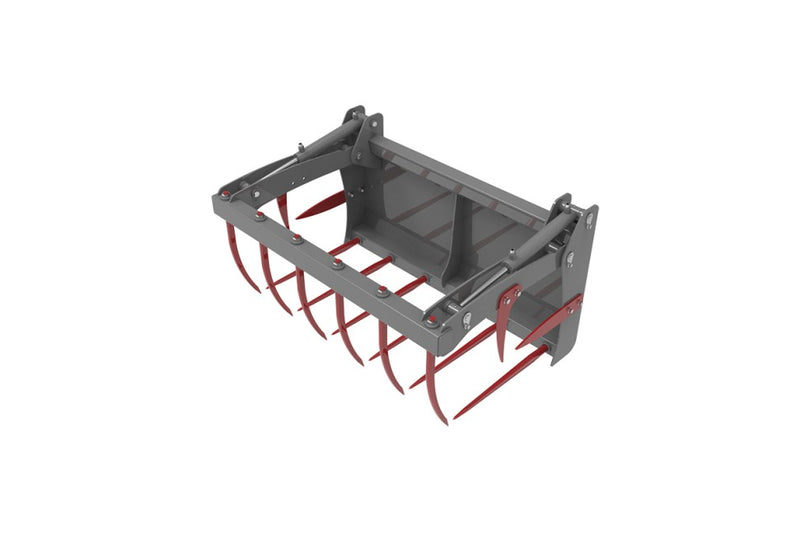

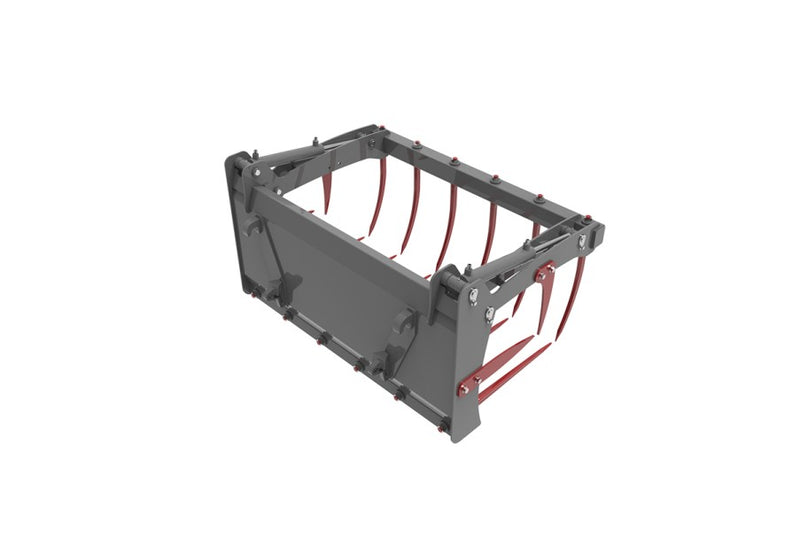

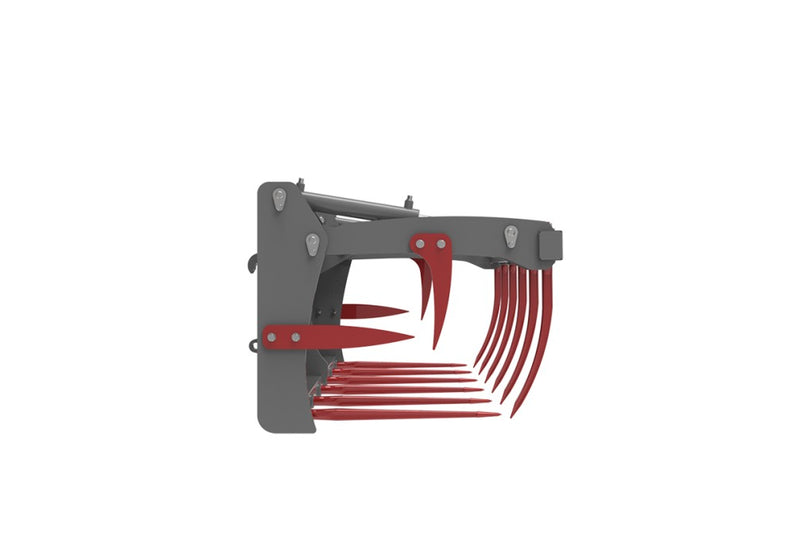

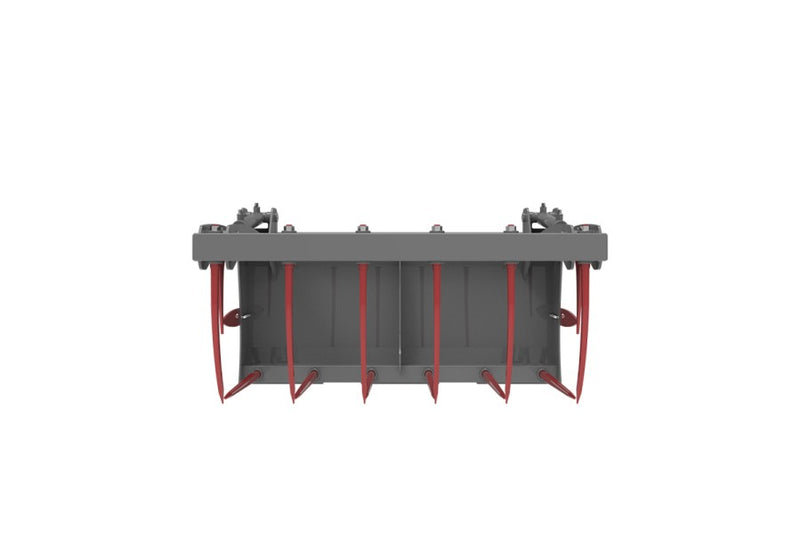

Product Overview
This attachment requires a third hydraulic control circuit to activate the grab portion of the attachment. The tines are forced through the silage in a circular motion using minimal effort and ensuring an efficient cut, clamping the material in the attachment. The tines are spaced to ensure wastage from material falling through the tines is kept to a minimum. All tines fit into a tapered sleeve and are removable.
Details
Features:
·Silage Grab
Specifications:
|
Type |
SWL/lb |
Dimension (WDH)/inch |
Bottom Times/inch |
Top Times/inch |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Bracket Type |
Weight/lb |
|
T-SG1500-EURO |
1653.47 |
59.06 × 43.98 × 32.87 |
φ1.42×31.89×0.24 |
φ1.42×26.77×0.24 |
16 |
60 |
EURO |
526.90 |
|
U-SG1800-EURO |
1984.16 |
70.87 × 43.98 × 32.87 |
φ1.42×31.89×0.28 |
φ1.42×26.77×0.28 |
16 |
60 |
EURO |
588.63 |
Technical Drawing:
