Product Overview

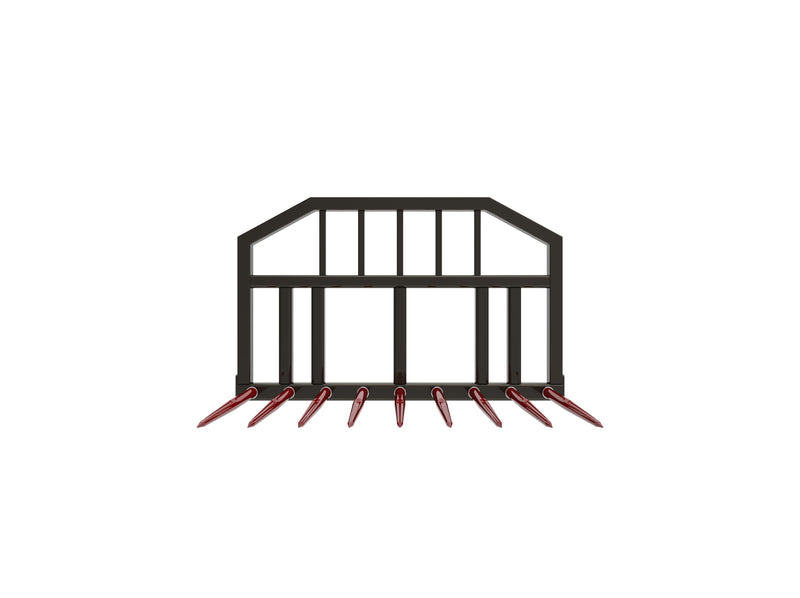

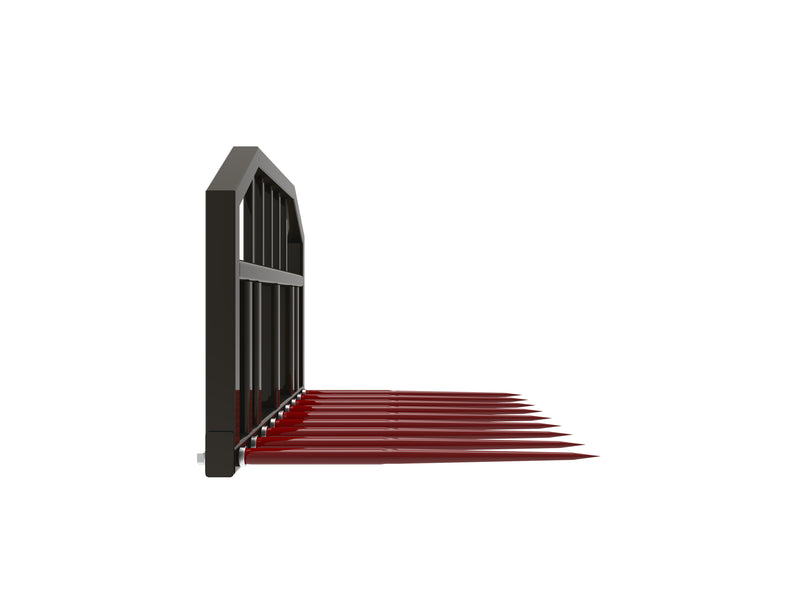

These high-strength steel silage forks (black enamel finish) feature welded Conus 1 taper sleeve bushes and an open back frame with vertical bars for superior visibility, excel at pit silage/light tree prunings, and fit almost any front end loader or material handler.
Details
Features:
·Silage Forks
·Comes with welded Conus 1 taper sleeve bushes
Specifications:
|
Type |
Dimension(LWH)/inch |
Main Spear(La)/inch |
Attachment |
Weight /lb |
|
T-SF1200-EURO |
46.30×47.24×36.91 |
φ1.77×43.31×7 |
EURO |
302.03 |
|
T-SF1500-EURO |
46.30×59.06×36.91 |
φ1.77×43.31×9 |
EURO |
383.60 |
|
T-SF1500-SMS-C |
46.30×59.06×36.91 |
φ1.77×43.31×9 |
SMS |
388.01 |
|
T-SF1800-EURO |
46.30×70.87×36.91 |
φ1.77×43.31×11 |
EURO |
462.97 |
|
T-SF2000-SMS-C |
46.30×78.74×36.91 |
φ1.77×43.31×12 |
SMS |
520.29 |
|
T-SF2000-EURO |
46.30×78.74×36.91 |
φ1.77×43.31×12 |
EURO |
513.68 |
Technical Drawing:
