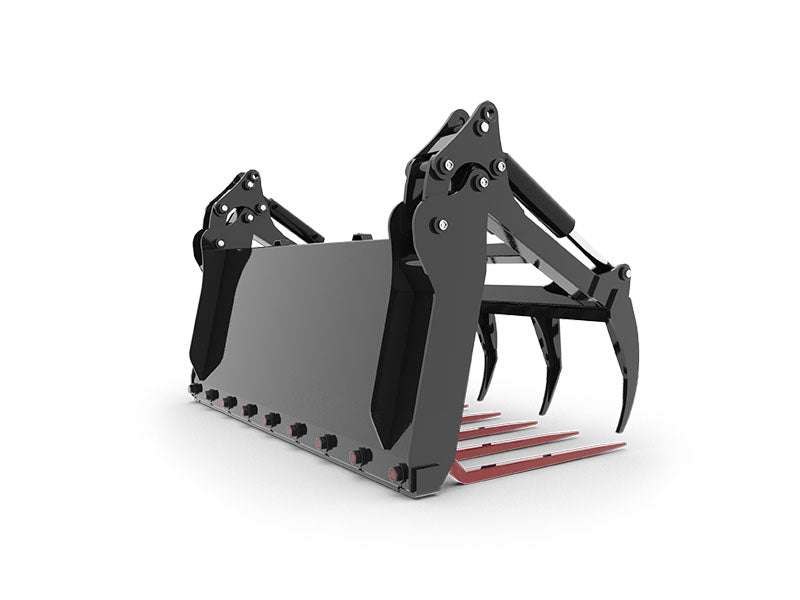

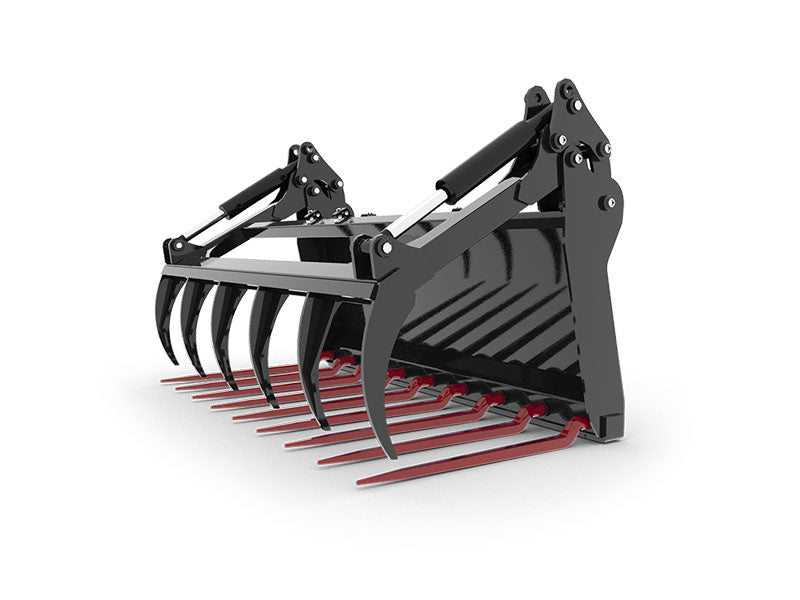

Product Overview
Forks with Grapple makes it possible to hold and tear out grass and maize silage as well as stable manure and transport loose manure, straw, greenery and pruning.
Details
Features:
·Manure Fork & Regular Utility Grapple
·Robust steel design for tough use with thick-walled side plates, wear plate under the lower protected tines
·stable due to cross tube on the upper edge
Specifications:
|
Type |
Dimension (W×D×H)/inch |
Opening Range (OR)/inch |
Main Spear/inch |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
S-MF2130GR1830(72IN)-MP1140 |
85.75 × 41.18 × 41.46 |
3.94–56.50 |
φ1.42 × 34.65 × 11 pcs |
16 |
60 |
1056.01 |
Technical Drawing:
