Product Overview

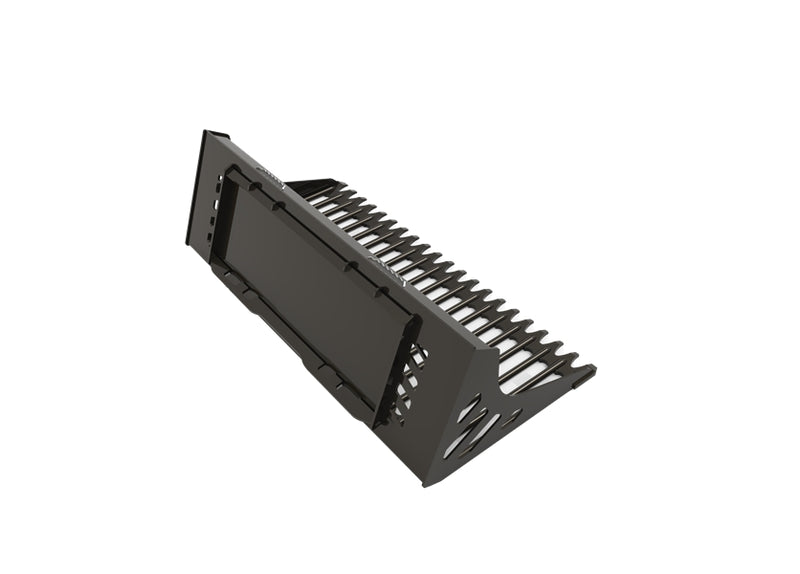

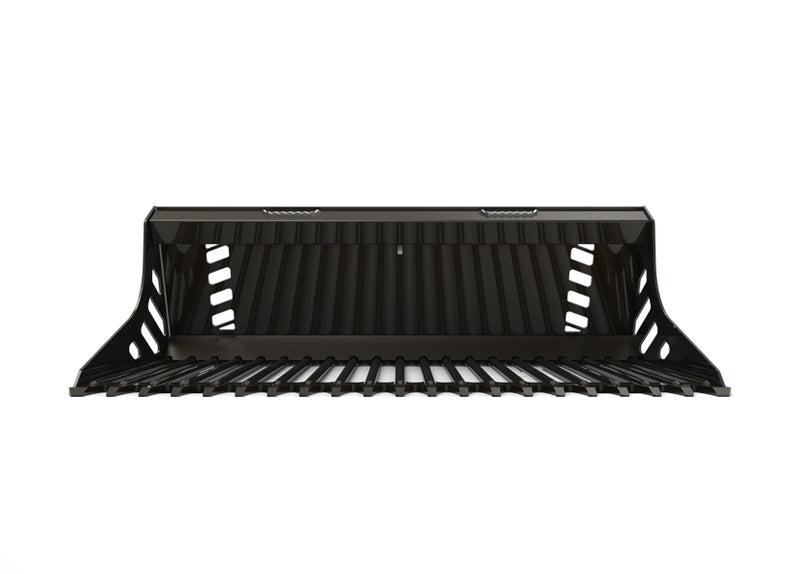

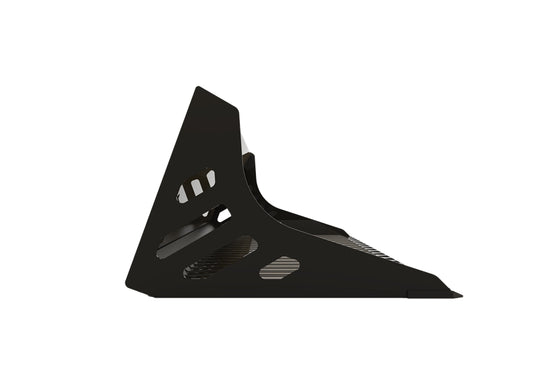

The Extreme Duty Round Bar Rake Bucket is designed for extreme use on large Skid Steer loaders.It features strong round bar tines integrated into a webbed and chamfered cutting edge for increased strength compared to standard round bar rake buckets.The bottom of the bucket has an enclosed cross-member for increased strength and the top cross-member is sloped forwards for improved vision.
Details
Features:
·Rod Rock Bucket
·Reinforced round bar tines + webbed/chamfered cutting edge, higher strength than standard round bar rake buckets
·Enclosed cross-member (bucket bum) for strength
Specifications:
|
Type |
Dimension (W×D×H)/inch |
Harrow Dia./inch |
Spacing/inch |
Volume/ft³ |
Weight/lb |
|
S-RRB1680(66IN)-MP1140 |
66.1×36.2×22.0 |
1.2 |
2.2 |
9.89 |
577.5 |
|
S-RRB1780(70IN)-MP1140 |
70.1×36.2×22.0 |
1.2 |
2.2 |
10.60 |
592.7 |
|
S-RRB1880(74IN)-MP1140 |
74.0×36.2×22.0 |
1.2 |
2.2 |
11.31 |
617.3 |
|
S-RRB1980(78IN)-MP1140 |
78.0×36.2×22.0 |
1.2 |
2.2 |
11.66 |
644.9 |
|
S-RRB2080(82IN)-MP1140 |
81.9×36.2×22.0 |
1.2 |
2.2 |
12.36 |
678.7 |
Technical Drawing:
