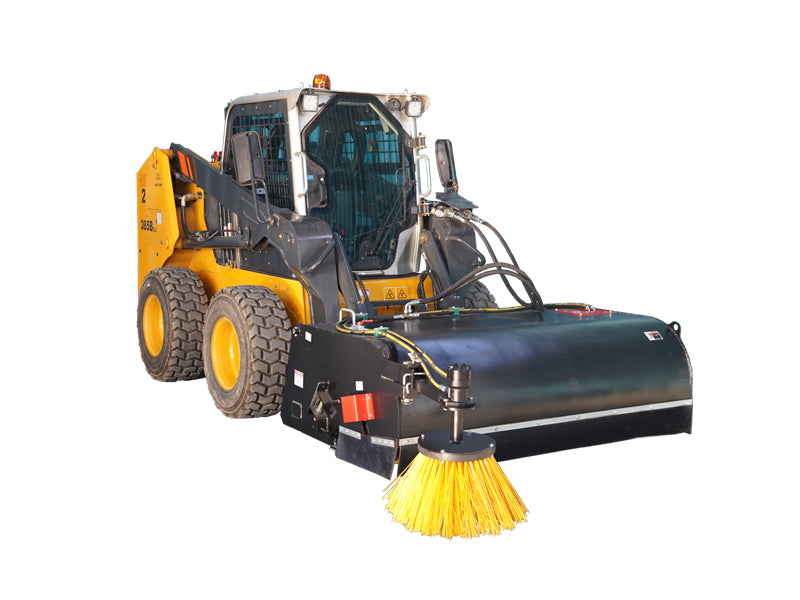

Product Overview
The Skid Steer Box Broom Sweeper Attachment is a great cleanup attachment for those who find the standard angle brooms too messy.The Sweeper can sweep, collect and dump dirt and other debris in just one attachment. It is ideal for construction, industrial or municipal jobs.
500mm diameter side brush for effective sweeping action. Quick change brush without breaking hydraulic lines. Bi-directional broom sweeps forward to pick up dirt; reverses to collect rock and construction debris etc. It contains a bucket will hold considerably more debris volume with less recirculation when compared to conventional sweepers. To dump, just lift and tilt; no chains are required.
Details
Features:
·Box Broom With Side Brush
·Adjustable arbor mounts allow control over bristle pressure to surface while extending bristle life
·Replaceable cutting edge
·Completely covered to control dust
·Reversible bristle direction for multipurpose
Specifications:
|
Type |
Sweeping Width(SW)/inch |
Dimension (L×W×H)/inch |
Brush Dia.(D)/inch |
Brush Qty. |
Operating Pressure/MPa |
Hydraulic Flow/LPM |
Weight/lb |
|
S-BBS1830(72IN)-MP1140 |
72.0 |
86.6×81.1×23.8 |
21.7 |
38 |
16 |
60 |
1009.7 |
|
S-BBS2110(83IN)-MP1140 |
83.1 |
97.6×81.1×23.8 |
21.7 |
44 |
16 |
60 |
1126.6 |
Technical Drawing:

Scene graph:
