Product Overview

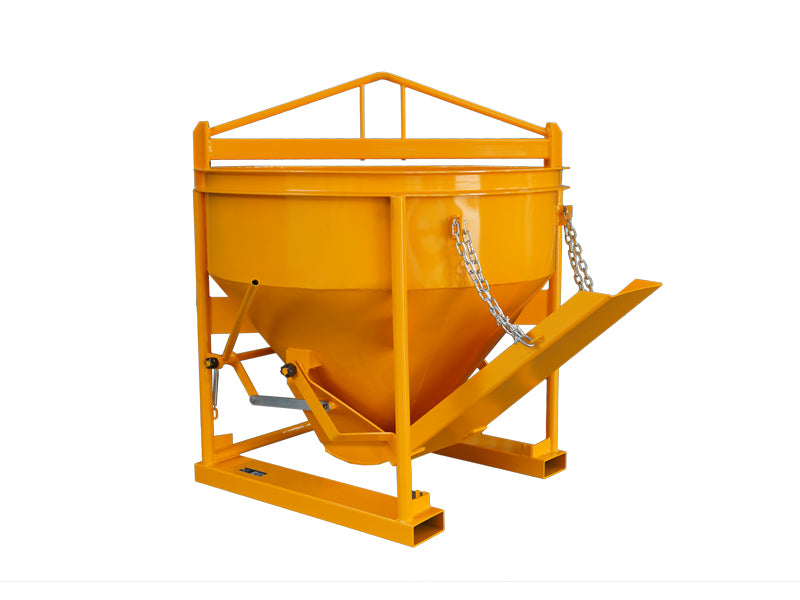

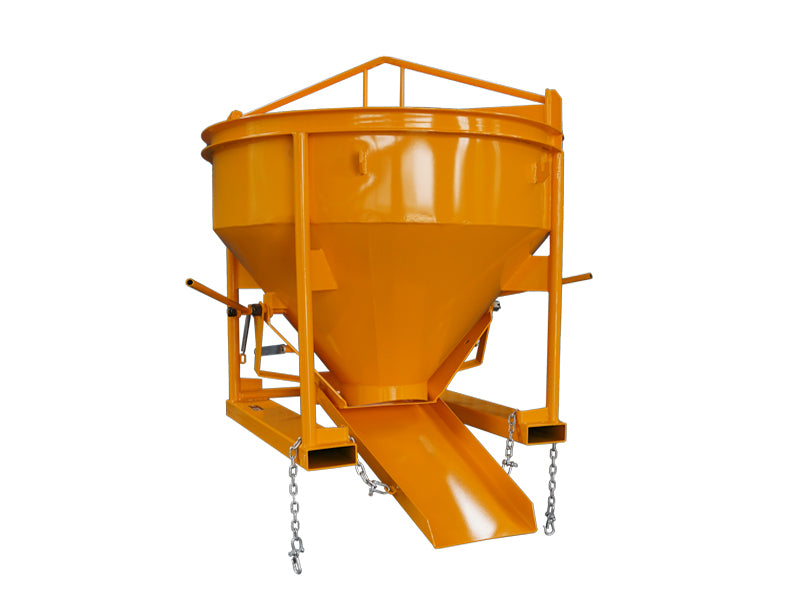

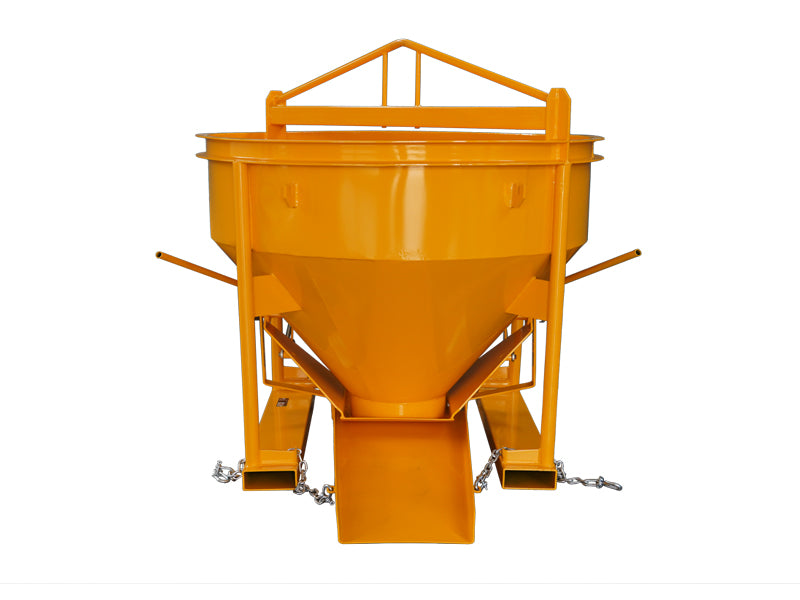

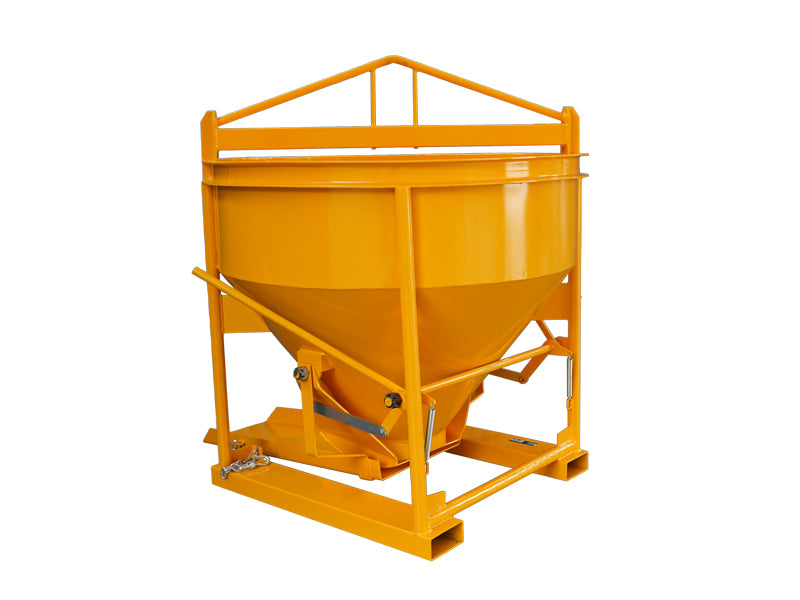

Concrete Kibbles have been designed for easy transfer of concrete on site by overhead crane. This lightweight yet heavy duty Kibble can be used for both bottom discharge or side discharge with the use of the adjustable chute.

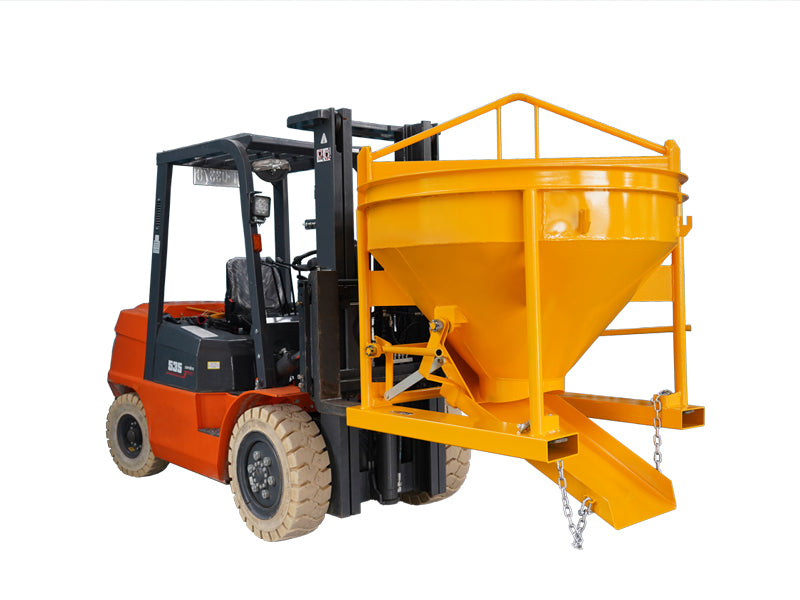

The unit has been fitted with Forklift pockets for transport purposes in the work site.
Details
Features:
·Concrete Kibble
·This unit is lever operated from either side, allowing flexible operation
Specifications:
|
Type |
SWL(lb) |
Dimension(LWH)/inch |
Main Plate Thickness(inch) |
Pocket Size(ab)/inch |
Pocket Centres(inch) |
Volume(inch³) |
Weight(lb) |
|
WS-CK05 |
3306.93 |
57.09×60.63×54.33 |
0.12 |
6.50×2.56 |
34.25 |
30511.87 |
606.27 |
|
WS-CK10 |
6613.87 |
60.24×68.90×66.14 |
0.12 |
6.50×2.56 |
34.25 |
61023.74 |
705.48 |
|
WS-CK15 |
7716.18 |
62.60×71.65×74.02 |
0.12 |
6.50×2.56 |
34.25 |
91535.62 |
914.92 |
