Product Overview

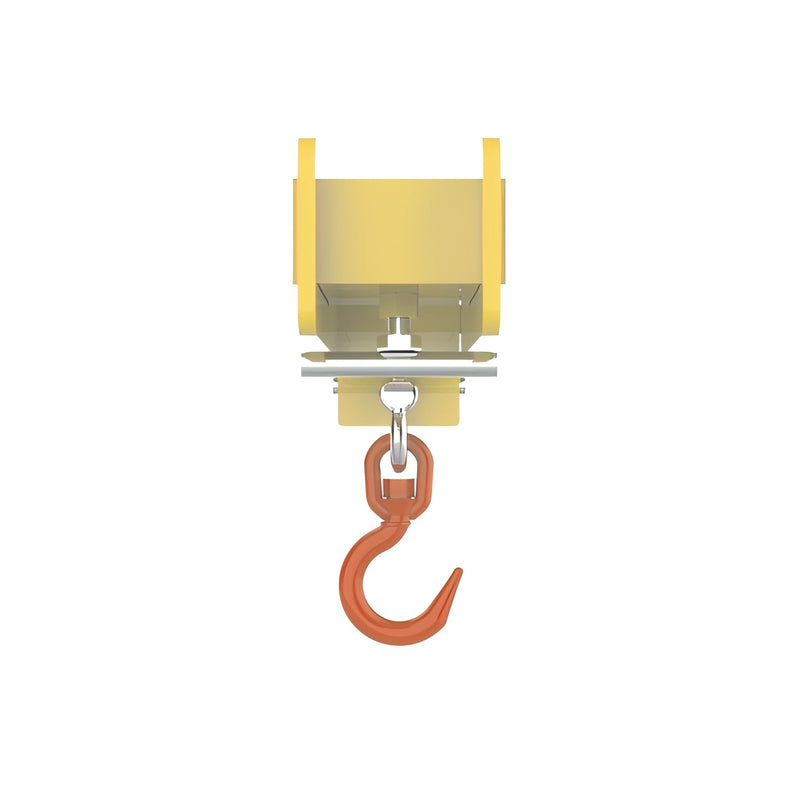

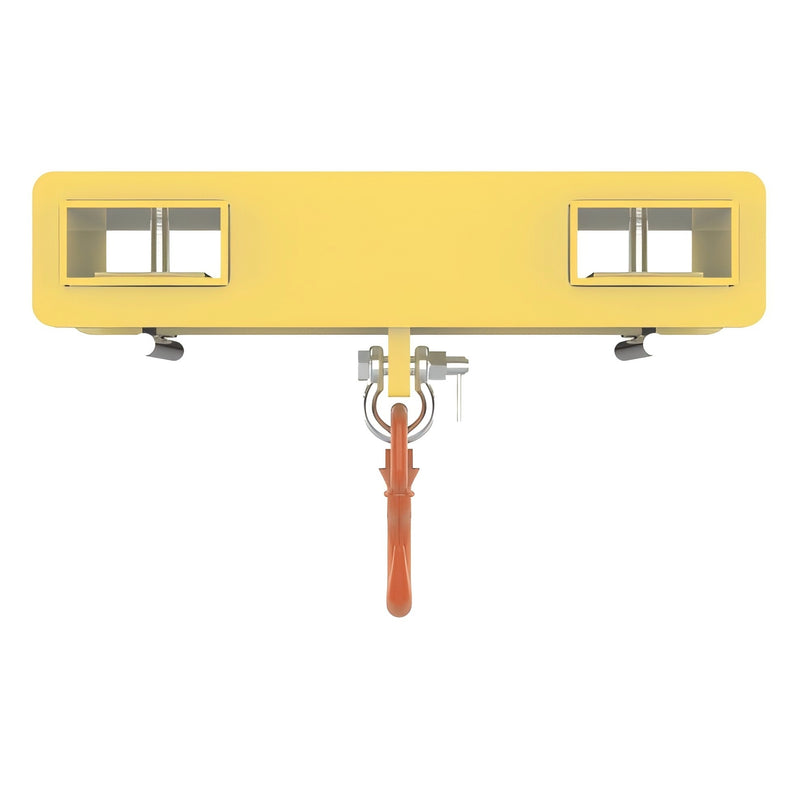

Easily convert your forklift into a mobile crane with the FH25 lifting hoist. Make your heavy lifting job much easier by utilizing your forklift's full capacity with this high quality yet affordable product. The hook point is located at the standard load center where most forklifts are rated. Rugged heavy duty construction ensures long term durability.
Details
Features:
·Lifting Hoist Swivel Hook
·Simply slide the hoisting hook over your pallet forks through the fork pockets, clamp them down with the thumbscrews for safety, and attach the hook to your payload.
Specifications:
|
Type |
SWL (lb) |
Length (inch) |
Width (inch) |
Height (inch) |
Pocket Size(ab) (inch) |
Pocket Centres (inch) |
Weight (lb) |
|
F-FH25 |
4409.24 |
25.98 |
5.98 |
7.87 |
5.43 × 2.17 |
17.95 |
59.53 |
|
F-FH35 |
6613.86 |
25.98 |
5.98 |
7.87 |
5.43 × 2.17 |
17.95 |
77.16 |
|
F-FH40 |
7716.17 |
25.98 |
6.38 |
7.87 |
5.43 × 2.17 |
17.95 |
79.37 |
|
F-FH150 |
31966.99 |
42.52 |
9.84 |
12.20 |
9.84 × 4.33 |
22.60 |
315.26 |
Technical Drawing:
Scene graph:
