Product Overview

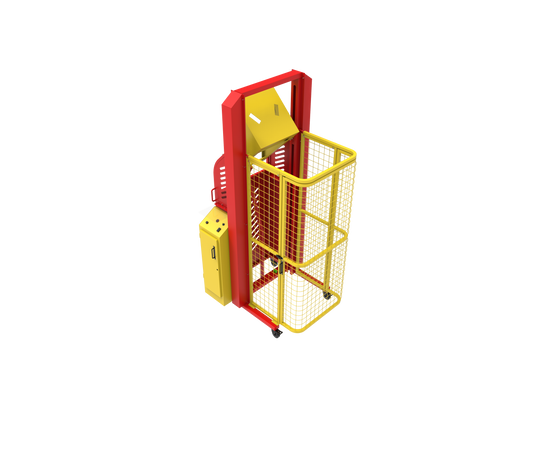

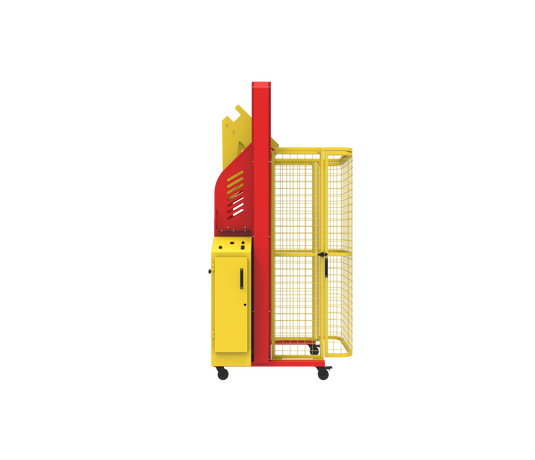

Type DB Bin Tipper provide an excellent solution for emptying bulky trash cans. Only one person can easily dump the 250kg garbage bin, saving manpower and improving efficiency. The standard bracket is designed for 240L wheeled bins. Also available with bolted spring card equipment for dumping 80L, 120L and140L hoppers.
Details
Features:
·Bin Tipper
Specifications:
|
Type |
SWL/lb |
Dimension(LWH)/inch |
Dumping Height(Hd)/inch |
Weight/lb |
|
WS-BT16 |
551.16 |
50.91 × 53.19 × 109.57 |
62.99 |
835.55 |
|
WS-BT18 |
551.16 |
50.91 × 53.19 × 117.44 |
70.87 |
870.83 |
|
WS-BT20 |
551.16 |
50.91 × 53.19 × 125.31 |
78.74 |
903.90 |
|
WS-BT22 |
551.16 |
50.91 × 53.19 × 133.19 |
86.61 |
959.01 |
Technical Drawing:
